The Complete Guide to Water Bottling Lines: From Filling to Capping

A professional water bottling line represents a fully integrated automated industrial manufacturing configuration designed to rinse, sanitize, fill, cap, seal, and package purified drinking liquid into plastic or glass containers at high volumetric speeds utilizing an automated bottle filling machine mechanism.

To successfully navigate the selection, layout engineering, and operation of these highly sophisticated production configurations, a complete breakdown of every integrated asset is required. This comprehensive guide outlines the structural mechanics, mechanical principles, and structural elements that govern high speed liquid packaging lines, detailing the individual operational steps that differentiate standard filling setups from high capacity industrial complexes.

By exploring the foundational elements of automated liquid processing, factory operators can implement high density production workflows that ensure complete operational efficiency, hygienic liquid safety, and robust competitive positioning across international B2B industrial supply chains.

Executive Summary of Technical Sections

What Is a Water Bottling Line and How Does It Work?

A water bottling line is an automated system of industrial machines linked together by specialized material handling networks to transform raw containers into filled, capped, labeled, and tracked packages utilizing a core bottle filling machine mechanism.

The core operating principle of a modern fluid packaging layout centers around the continuous, synchronous movement of structural components across specific physical stations. Empty plastic polyethylene terephthalate or glass containers are initially loaded into an unscrambler unit that aligns them in a uniform direction, orientation, and spacing. Once organized, the bottles move directly into a specialized rotary rinsing module where pressured sterile water or filtered compressed air purges any physical particulate debris, microscopic dust, or atmospheric contaminants accumulated during shipping or blowing processes.

Following the purification and rinsing cycle, the synchronized mechanical system transfers the empty containers into the core bottle filling machine station via a system of continuous rotating starwheels or precision neck gripping configurations. The bottle filling machine introduces a predetermined volume of purified water into each container utilizing sophisticated flow control valves or gravity fed timed displacement nozzles. As the liquid reaches the precise target line, the filling mechanism cuts off fluid flow instantly to eliminate product spillage, foam generation, or external cross contamination, preparing the filled container for immediate capping synchronization.

The finalize phase involves automated cap application where plastic threaded closures or crown caps are mechanically sorted, aligned, oriented, and applied to the bottle necks with precise mechanical torque settings. This highly cohesive workflow operates within a controlled cleanroom enclosure to prevent environmental microbes, ambient humidity, or external industrial particles from entering the open container prior to seal compression. Industrial configurations implement comprehensive sensor loops, programmable logic controllers, and variable frequency drives to adapt processing speeds based on product viscosity, bottle size geometry, and real time line metrics.

Foundational Technical Advantages of Automated Lines

1. High Volumetric Speed: Automated operations dramatically increase daily production yields, allowing factories to package thousands of gallons per hour with minimal physical labor intervention.

2. Precise Dosing Metrics: Integrated flow sensors ensure uniform product quantities per bottle, eliminating product giveaway and maintaining strict compliance with international packaging legislation.

3. Sanitary Packaging Environments: Enclosed structural blocks reduce human exposure, utilizing automated clean in place systems to continuously wash fluid pathways and prevent bacterial biofilms.

Key Stages in the Bottled Water Production Process

The complete bottled water production process consists of sequentially ordered operational stages that encompass container formation, fluid sanitization, high precision filling, tight torque cap sealing, and automated outer secondary logistical packaging.

The initial phase of production originates at the container preparation section, where heavy duty blow molding machines heat preforms and mold them into high quality plastic bottles using high pressure compressed air. These newly formed bottles are immediately channeled via air conveyors directly into the continuous manufacturing line, ensuring zero storage time and preventing airborne contamination. For advanced processing plants, implementing a comprehensive High speed Water Bottling Machine establishes an optimized workflow that merges high capacity container movement with immediate fluid rinsing cycles.

Once the containers enter the sterile enclosure zone, they undergo a multi step sanitization protocol where mechanical grippers invert the bottles 180 degrees over high pressure sanitizing nozzles. This process eliminates any microscopic residues, preparing the clean interior surfaces for direct interaction with the treated water product. The container then transitions smoothly to the primary filling station, where specialized filling nozzles lower into the bottle necks to introduce the beverage without generating turbulence, surface splashing, or oxygen pickup.

Sequential Production Stage Analysis

After completing the liquid dosing operation, the bottles advance instantly into the rotary capping turret to establish a hermetic barrier against external environmental factor exposure. The capped bottles then pass through advanced online quality control inspection blocks where automatic high resolution vision cameras identify fill level anomalies, crooked caps, or missing closure components. Rejected containers are automatically shunted away from the main stream by high speed pneumatic pushers, while verified perfect containers advance to the industrial labeling, batch laser coding, and shrink wrapping units for secondary outer shipping preparation.

Integration of Filling, Capping, and Sealing in Modern Lines

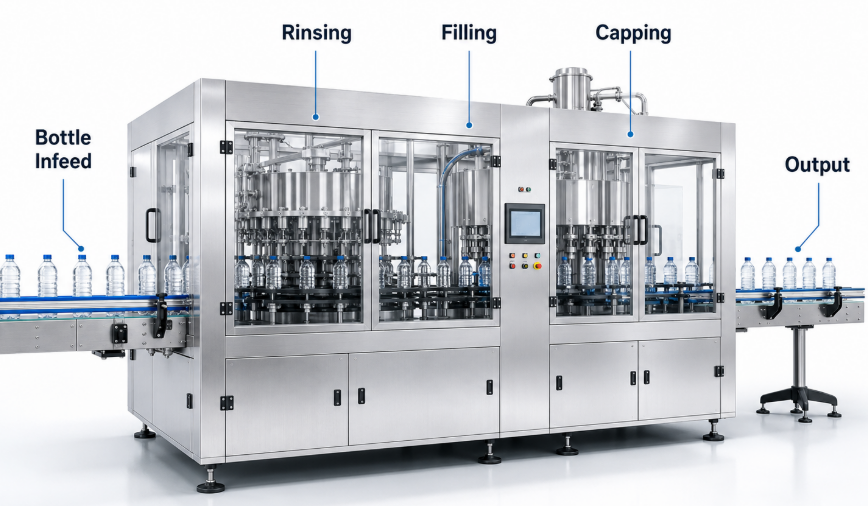

Modern liquid packaging engineering relies on the full physical integration of the rinsing, filling, capping, and sealing steps within a single unified structural footprint known as a monobloc machine matrix.

Historically, beverage factories operated separate independent machines linked by long, unclosed conveyor systems, which required substantial floor footprints and exposed open containers to prolonged environmental dust contamination risk. By implementing an integrated monobloc design, modern facilities combine the rinsing turret, the bottle filling machine station, and the torque capping turret onto a single structural frame driven by a central synchronization motor system. This structural engineering shift optimizes spatial configuration footprints while cutting container transfer times between filling and sealing to fractions of a second, significantly reducing bacterial contamination threats.

The mechanical synchronization within an integrated monobloc system utilizes a highly precise arrangement of gear driven starwheels that firmly grip the bottle necks throughout the entire sequence. As a container finishes its rinsing cycle, an intermediate starwheel immediately transfers it to the filling pedestal without allowing the container to tilt, vibrate, or lose mechanical alignment. This precise structural layout is crucial for running ultra thin, lightweight plastic containers that would otherwise distort or collapse under conventional conveyor belt pressure arrays.

Furthermore, this unified layout facilitates the implementation of advanced Clean-in-Place and Sterilize-in-Place systems that fully automate sanitation across all product contact parts. Internal fluid conduits, flow control valves, and filling nozzles are automatically flushed with hot caustic solutions, sanitizing acids, and sterile water loops according to preset digital maintenance intervals. To further upgrade line flexibility for specialized applications such as beverage manufacturing, operators can deploy a highly adaptive Carbonated Beverage Bottling Plant carbonated Water Machine that bridges the operational requirements of carbonated gas retention and still water packaging within a single modular platform.

Key Advantages of Integrated Monobloc Systems

• Minimized Contamination Risks: The reduced transport distance between filling and sealing maintains maximum container cleanliness.

• Enhanced Layout Efficiency: Eliminating separate intermediate accumulation conveyors saves up to 45 percent of industrial plant floor space.

• Synchronized Speed Controls: A single master programmable logic controller manages line acceleration, preventing machine collisions or timing errors.

Water Bottle Filling Machine: Types, Systems, and Efficiency

Selecting the correct configuration of a water bottle filling machine depends directly on the unique physical properties of the fluid being packed, the desired production rate, and the physical characteristics of the container.

Industrial liquid packaging utilizes several distinct types of dosing mechanisms to achieve high accuracy and throughput. For standard purified water applications, a gravity fed volumetric bottle filling machine represents the most cost effective and reliable system. In this setup, the liquid reservoir is positioned directly above the filling valves, and fluid fills the container through natural gravitational displacement until the fluid reaches a mechanical vent hole that cuts off the vacuum pressure, terminating the flow at a highly uniform height level.

For operations involving carbonated water, mineral beverages, or functional waters containing dissolved gasses, an isobaric counter pressure filling system is mandatory. This specialized system pressurizes the interior of the empty bottle with inert carbon dioxide gas until the internal container pressure perfectly matches the pressure inside the filling storage tank. Once equilibrium is established, the liquid valve opens, allowing the product to flow smoothly down the internal walls of the container without releasing dissolved carbon dioxide or causing disruptive foaming. High throughput facilities rely on automated systems where an advanced industrial bottle filling machine coordinates these complex gas and fluid cycles seamlessly across multi head rotary configurations.

Technical Fluid Displacement System Comparison

To maximize continuous line efficiency, advanced manufacturing plants increasingly specify electronic flow meter filling systems. These configurations utilize independent electromagnetic or mass flow meters at each individual filling valve head to measure the exact fluid mass or volume entering the bottle in real time. Because this electronic process eliminates physical contact between the bottle neck and the filling valve, it provides unparalleled sanitary conditions, completely eliminates valve wear, and allows operators to adjust fill volumes instantly via a computerized human machine interface screen.

Integrating Bottle Filling and Capping on Automated Lines

The successful physical integration of the bottle filling machine and capping turrets requires flawless mechanical timing, uniform torque transmission, and automated cap management systems to achieve an airtight closure seal without damaging container components.

As filled containers emerge from the high speed filling valve assembly, they possess an exposed liquid surface that must be covered immediately to prevent contamination or product degradation. The transfer mechanism uses specialized synchronized guide tracks and pitch changing starwheels to transition the unstable filled containers into the rotary capping machine turret. If there is even a millisecond of lag or alignment deviation during this critical physical handoff, liquid will spill over the container neck, causing immediate product loss and creating potential sanitation hazards on the surrounding mechanical components.

The capping turret operates by picking up closures from an automated sorting elevator that continuous aligns, treats, and feeds caps down a sloped distribution chute. As each container passes beneath the distribution mechanism, it extracts a cap from the feed nest in a continuous pick and place motion. The capping head then descends vertically over the bottle neck, utilizing adjustable magnetic clutches or servo driven motors to apply a precise precalculated rotational torque force that tightens the closure perfectly onto the molded plastic threads.

Critical Parameters for Zero Defect Integrated Capping

1. Magnetic Clutch Torque Control: Consistent torque application ensures that caps are sufficiently tight to prevent leakage while remaining easy for consumers to open without mechanical tools.

2. Cap Track Sensor Synchronization: Photovoltaic sensors continuously monitor the presence of closures in the feed chute, automatically stopping the line if the cap supply runs low to prevent unsealed bottles.

3. Deformer Profiling Systems: Specialized mechanical sorters automatically isolate and reject deformed, inverted, or off size caps before they reach the main capping head assembly.

Role of Conveyor Systems in Streamlining the Filling Process

Industrial conveyor systems serve as the critical mechanical circulatory network of a water packaging plant, managing container logistics, regulating line pressure accumulation, and buffering structural throughput variances between machines.

A high speed bottle filling machine cannot operate in absolute isolation; its ultimate efficiency depends heavily on the continuous supply of empty containers and the rapid removal of filled products. Air conveyors are utilized exclusively to transport empty plastic bottles from the blow molder, using high velocity filtered air currents to glide the containers forward by their top structural neck rings. This approach prevents physical friction damage to the thin plastic side walls and maintains maximum sanitary protection by keeping the containers elevated off floor level tracks.

Once the containers emerge from the capping module as heavy, liquid filled packages, they transition onto heavy duty modular flat top plastic chain conveyor networks. These material transport sections are strategically divided into distinct speed zones controlled by intelligent frequency inverters and proximity sensor arrays. By subtly modulating conveyor tracking speeds, the material handling network can closely manage container accumulation pressure, preventing tight bottle crowding that can lead to line jamming, scuffed labels, or tipped containers during downstream transitions.

To further protect against unexpected downstream micro stops, such as a temporary label roll replacement or packaging material refill, automated accumulation tables are integrated directly into the conveyor line configuration. These wide multi lane buffering zones store thousands of filled bottles temporarily without stopping the central bottle filling machine unit, keeping the primary monobloc running continuously at optimal operating temperatures and peak mechanical performance levels.

Comprehensive Technical Summary

Optimizing an automated water packaging installation requires an in depth understanding of how individual mechanical modules function together within a continuous industrial ecosystem. From the initial preform air blowing stage to high precision liquid dosing via an automated bottle filling machine, every step must be calibrated to achieve maximum volumetric speed, strict sanitary control, and long term mechanical reliability. Implementing a fully integrated monobloc system that unifies rinsing, filling, and torque capping operations provides modern packaging plants with the precise operational control needed to eliminate product waste and lower overall manufacturing overhead costs.

By selecting the ideal liquid displacement technology, whether gravity fed level control or advanced counter pressure systems, and pairing it with smart conveyor logistics, B2B manufacturers can build reliable packaging infrastructures that adapt easily to changing global market demands. Prioritizing robust industrial design, advanced clean in place functionality, and automated quality inspection guarantees that the final packaged beverage conforms to rigorous safety legislation while delivering exceptional consumer satisfaction across international supply networks.
