How Can the Blowing Filling Capping Combiblock Improve the Efficiency of the Beverage Filling Industry?

A Blowing Filling Capping Combiblock drastically improves beverage industry efficiency by eliminating intermediate bottle handling systems, reducing energy and floor space demands by up to 30%, minimizing biological contamination risks, and streamlining labor requirements into a unified, high-speed rotary manufacturing cell.

At a Glance

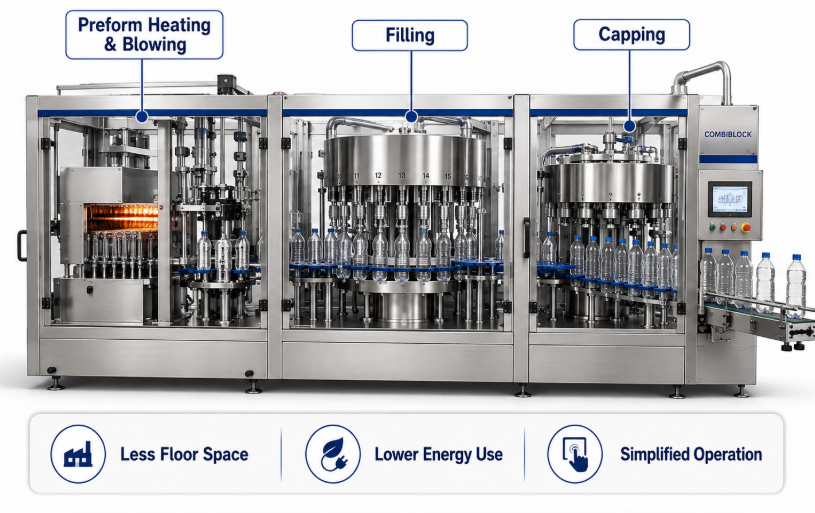

The All-In-One Solution: Blowing-Filling-Capping Machine

The Blowing Filling Capping Combiblock integrates three previously standalone machinery groups into a single, direct-coupled, continuous rotary processing system that optimizes total plant thermal and mechanical efficiency.

Traditional beverage bottling facilities historically relied on a linear layout: a standalone stretch blow molding machine transformed PET preforms into bottles, which were then ejected onto long, air-powered conveyor lines. These air conveyors transported lightweight, unstable PET shells across tens of meters to reach separate rinsing, filling, and capping monoblocks. This conventional model exhibits massive operational vulnerabilities. Air conveyors consume continuous electrical energy to run high-volume blowers, gather dust and airborne particulate, demand constant maintenance due to bottle jams, and require significant physical footprint within climate-controlled cleanroom zones.

The Blowing Filling Capping Combiblock addresses these systemic limitations by establishing a direct mechanical neck-handling transfer mechanism between the blow molding wheel, the filling carousel, and the capping turret. Preforms enter the heating oven, undergo biaxial stretch blow molding using high-pressure compressed air, and immediately transfer via continuous-motion starwheels directly into the filling valves. By bypassing the intermediary cooling and air transport phases, plant engineers preserve thermal energy, eliminate bottle accumulation buffers, and compress the total machine footprint by up to 30% to 45%. From a structural design perspective, integrating these units onto a single structural base frame drastically simplifies main drive synchronization, allowing a master servo control network to manage the entire kinematic chain.

From an engineering standpoint, our decision to integrate these processing units directly stems from analyzing client thermal dissipation losses during high-speed production cycles. When PET bottles cool on air conveyors prior to filling, they suffer structural shrinkage and stress relaxation, which compromises volumetric filling precision. In our continuous high-speed systems, such as the combi blowing filling capping production line, the bottle is held firmly by its neck ring throughout its entire transformation journey, guaranteeing dimensional stability and peak volumetric filling accuracy. European client field data confirms that this unified configuration lowers net energy usage per thousand bottles while significantly decreasing utility connection complexity.

Structural and Mechanical Specifications Matrix

Operational Utilities and Air Recovery Design

1. High-Pressure Air Recycling Architecture: Modern stretch blow molding generates significant volumes of exhausted high-pressure compressed air. Integrated combiblock systems utilize multi-stage air recovery valves that capture exhaust air from the primary blow phase and rechannel it toward pre-blowing stages, pneumatic actuator power lines, and factory shop air networks.

2. Low-Energy Infrared Preform Heating: Advanced Near-Infrared (NIR) heating modules reduce energy consumption by focusing heating wavelengths specifically to the absorption spectrum of standard PET resins, minimizing thermal losses to the surrounding mechanical structure.

3. Centralized Lubrication and Maintenance System: Automated dry-lube and centralized grease distribution networks supply moving joints and bearings on set schedules, minimizing wear, extending component service life, and eliminating manual maintenance downtime.

High-Speed Performance for Maximum Output

A high-speed Blowing Filling Capping Combiblock achieves maximum throughput efficiency by utilizing master-servo synchronization to eliminate container buffer delays, transport bottle jams, and mechanical speed mismatches.

Line efficiency in high-throughput beverage packaging plants is fundamentally limited by the weakest link in the transport chain. In legacy multi-machine setups, a minor bottle tip-over on an air conveyor causes an immediate upstream emergency stop on the blowing machine and a downstream starvation stop on the filler. The restarting procedure involves thermal stabilization delays for heating ovens, mechanical clearing, and line flushing, causing massive overall equipment effectiveness loss. The direct-coupled design of the Blowing Filling Capping Combiblock removes intermediate accumulation zones entirely, maintaining a locked kinematic phase relationship from the preform infeed wheel through to the capped container discharge conveyor.

High-capacity production environments require precise speed matching across varying product viscosities and carbonation levels. Modern combiblock architectures utilize multi-axis motion controllers communicating via high-speed optical fieldbus networks. Each rotary wheel—from the preform heating oven and blowing station to the filling valves and capping heads—is driven by dedicated synchronous servo motors. This electronic gearing layout guarantees sub-millimeter positional alignment at production speeds exceeding 24,000 to 48,000 bottles per hour. By eliminating mechanical transfer chains, universal joints, and complex gearboxes, plant operators eliminate backlash, reduce mechanical vibration, and slash sound emissions across the factory floor.

When evaluating system performance for high-speed carbonated soft drink (CSD) and mineral water applications, European and Asian plant operators prioritize continuous linear output speed and net overall equipment effectiveness. Our engineering designs prioritize a smooth neck-handling kinematic profile that mitigates centrifugal liquid spillage during high-speed carousel rotation. This critical feature allows high-viscosity juices, milk beverages, and CSD products to run at top rated speeds without losing volume or soiling bottle exteriors. Integrating a high-performance fully automatic CSD bottling system ensures continuous dynamic torque monitoring across all capping spindles, catching loose or tilted caps without slowing down the line.

Mechanical Synchronization and Conveying Comparison

Key Factors Driving High-Speed Throughput

1. Seamless Neck-Handling Transfer: By supporting containers exclusively under the neck ring throughout the blowing, filling, and capping cycles, thin-walled lightweight PET containers can be processed at ultra-high speeds without mechanical deformation or buckling.

2. Dynamic Volumetric Flow Control: Electronic magnetic flowmeters or load cell weighing modules dynamically adjust liquid release curves based on real-time carousel rotation speed, maintaining exact target fill levels even during controlled ramp-up and ramp-down cycles.

3. Automated Rejection Systems: Integrated vision inspection sensors identify missing preforms, malformed bottle necks, underfilled containers, and misapplied closures directly on the high-speed transfer starwheels, triggering targeted high-speed pneumatic pushers without disturbing surrounding containers.

Reduced Contamination Risks with Integrated Processes

Integrated combiblock machinery significantly minimizes microbiological contamination risks by isolating the container lifecycle within a single sterile, positive-pressure HEPA-filtered cleanroom enclosure.

Maintaining microbiological control is a critical imperative for modern beverage processors, particularly those producing non-carbonated mineral water, dairy, fresh juices, and sensitive cold-fill teas. In a traditional factory layout, newly blown hot PET containers are ejected into ambient air conveyors where they travel open-necked through non-sterile factory spaces. Airborne fungal spores, dust, micro-plastics, and bacterial particulates easily settle inside empty bottles before they reach the filler. Furthermore, traditional bottle rinsing units introduce water management complexities, requiring chemical sanitizers, sterile rinse water, and extensive wastewater recovery systems.

The Blowing Filling Capping Combiblock addresses biological risk management through complete physical isolation and thermodynamic process optimization. Because the stretch blow molding process subjects the internal surfaces of the PET preform to high-temperature compression and rapid expansion, the interior of a freshly blown PET bottle is essentially sterile at the moment of formation. In a combiblock machine, this freshly blown container transfers directly into the filling carousel inside a compact, Class 100 (ISO 5) positive-pressure sterile enclosure equipped with laminar flow HEPA air filtration. By keeping ambient plant air completely separate from the open bottle neck, processors often eliminate the need for liquid chemical rinsing units altogether for standard water and CSD applications.

From a sanitary engineering standpoint, client demands for extended shelf life without artificial preservatives have dictated strict design modifications to internal fluid paths. Our combiblock filling manifolds utilize non-contact electronic filling valves made exclusively from electro-polished AISI 316L stainless steel, completely avoiding mechanical contact between the filling nozzle and the bottle neck. For sensitive applications, such as an ultra-hygienic PET pure water filling machine, the integrated Clean-In-Place (CIP) and Sterilization-In-Place (SIP) systems feature automated dummy cup positioning, guaranteeing complete fluid recirculation and thermal sterilization of all product contact surfaces without manual operator intervention.

Environmental and Hygiene Feature Comparison

Advanced Cleaning Protocols and Sterilization Guidelines

1. Automated Clean-In-Place (CIP) Sequences: High-capacity combiblocks incorporate multi-stage automated CIP loops using caustic wash, hot water rinse, and acid neutralization steps. The system automatically deploys stainless steel dummy cups to seal filling nozzles, maintaining precise flow rates, temperatures, and chemical concentrations across all valve channels.

2. Automated Sterilization-In-Place (SIP): For ambient hot-fill or aseptic filling lines, high-pressure superheated water or pure steam cycles sterilize product contact paths up to 121°C, preventing spore survival and cross-batch contamination.

3. Continuous Enclosure Sanitization: Peracetic acid (PAA) or vaporized hydrogen peroxide (VHP) fogging systems clean the internal enclosure walls during recipe transitions, while continuous UV-C radiation units sterilize caps within the cap feed chutes prior to application.

Flexibility and Scalability for Growing Businesses

A modern Blowing Filling Capping Combiblock ensures long-term enterprise scalability by providing rapid toolless mold changeovers, recipe-driven automation, and modular expansion capabilities for multi-SKU beverage portfolios.

Beverage markets are characterized by rapidly changing consumer preferences, seasonal packaging variations, and shifting container profiles. Beverage producers must balance high-efficiency long runs with the agility to execute multi-SKU product changes across various bottle volumes, neck finishes, and container geometry profiles. Legacy filling lines suffer from long, expensive changeover procedures that require multiple technicians, extensive manual mechanical adjustments across air conveyors, rail alignments, rinsing pitch settings, and CSD valve adjustments—often resulting in 6 to 12 hours of total line downtime per changeover.

The Blowing Filling Capping Combiblock addresses operational agility by standardizing container handling around universal neck-handling profiles and deploying modular, quick-release mechanical tooling. Because the container is suspended and positioned by its standardized neck finish, major container volume variations (such as transitioning from a 330 ml bottle to a 1.5 L bottle) do not require height adjustments for transfer starwheels, filling carousel platforms, or capping heads. Mold changeovers on the blow molding module utilize toolless rapid-locking shell mechanisms, allowing a single technician to replace a complete blow mold station in less than two minutes.

In technical discussions with European beverage co-packers, flexibility across diverse liquid viscosities and container lightweighting options remains a top capital evaluation criterion. Lightweighting PET preforms—reducing wall thickness and neck finish weight to lower plastic raw material costs and carbon footprints—is a primary driver for packaging redesigns. However, extremely lightweight blown bottles are fragile and easily crushable on standard conveyor belts. Integrating an automated mineral water filling production line solves this structural challenge by maintaining positive internal air pressure or precision nitrogen dosing prior to capping. This prevents ultra-thin PET shells from collapsing during transfer, allowing plants to achieve aggressive resin reduction targets.

Toolless Changeover and SKU Transition Analysis

Operational Optimization Tips and Preventive Maintenance Guidelines

Critical Mechanical Alignments: Always inspect pitch-matching transfer starwheels using laser alignment tools during scheduled monthly preventive maintenance cycles. A misaligned neck gripper can apply uneven lateral shear force to hot PET container necks leaving the blow mold, causing subtle neck ovality that compromises downline capping hermetic seals.

1. High-Pressure Seal Maintenance Intervals: Blow molding valve blocks operate under intense cyclic pneumatic pressures up to 4.0 MPa. Replace internal high-pressure O-rings and polyurethane seals every 4,000 operating hours to prevent micro-air leaks that reduce blowing mold definition and waste electrical energy.

2. Servo Motor and Optical Encoder Calibration: Periodically verify zero-position encoder offsets on the master servo network. Re-calibrating electronic gearing ratios prevents mechanical backlash and stress on transfer starwheel drive shafts during emergency stop sequences.

3. Meticulous Thermal Management of Infrared Lamps: Keep quartz lamp reflectors clean and free from plasticizer residue using specialized optical cleaning solvents. Clean reflectors ensure uniform heat penetration into PET preforms, avoiding localized wall-thinning and un-blown preform defects.

Comprehensive System Efficiency and Return on Investment Analysis

Transitioning a beverage packaging enterprise from legacy separated equipment to a unified Blowing Filling Capping Combiblock represents a comprehensive capital investment that generates ongoing operational savings. Beyond direct speed increases, the total cost of ownership (TCO) advantage is achieved through compounding reductions in electrical power consumption, compressed air energy recovery, floor space requirements, biological scrap rates, and direct operator labor.

By condensing the blowing, filling, and capping processes into a single automated machinery cell, factory management optimizes workforce utilization. Rather than requiring separate operator teams for the blow molder, air conveyors, filler, and capper, a single trained operator manages the entire combiblock system through a centralized, intuitive HMI touchscreen terminal. Process parameters—such as heating zone temperatures, blowing pressures, volumetric fill targets, and capping torque curves—are saved, monitored, and adjusted in real time from a single control panel.

Ultimately, modern beverage facilities adopt combiblock technology to establish a predictable, high-speed, clean, and flexible manufacturing environment. As environmental regulations push for lighter PET containers, reduced electricity draw, and lower water consumption, direct-coupled rotary combiblock systems provide the technical framework necessary to maintain long-term profitability, consistent product quality, and continuous high-speed output.
