A Complete Guide to Blowing-Labeling-Filling-Capping Monobloc

The Blowing Labeling Filling Capping Monobloc is an ultra integrated liquid packaging platform that unifies stretch blow molding, high speed rotary labeling, precision liquid volumetric filling, and mechanical torque capping into a single, synchronized transfer system. By replacing traditional intermediate air conveyors and accumulation buffers with direct pitch matched neck transfer starwheels, a modern Blowing Filling Capping Combiblock eliminates container scratching, slashes energy consumption by up to 30 percent, reduces cleanroom footprint by over 40 percent, and enables ultra lightweight PET preform processing at speeds reaching 24000 to 48000 bottles per hour.

Table of Contents

1. What is a Blowing Labeling Filling Capping Monobloc

2. How Does a Monobloc Integrate Four Key Processes

3. The Core Advantages of a Blowing Filling Capping Combiblock

4. Key Applications The Ideal Use Cases for Monobloc Technology

5. Critical Components and Technologies Inside a Monobloc

What is a Blowing Labeling Filling Capping Monobloc

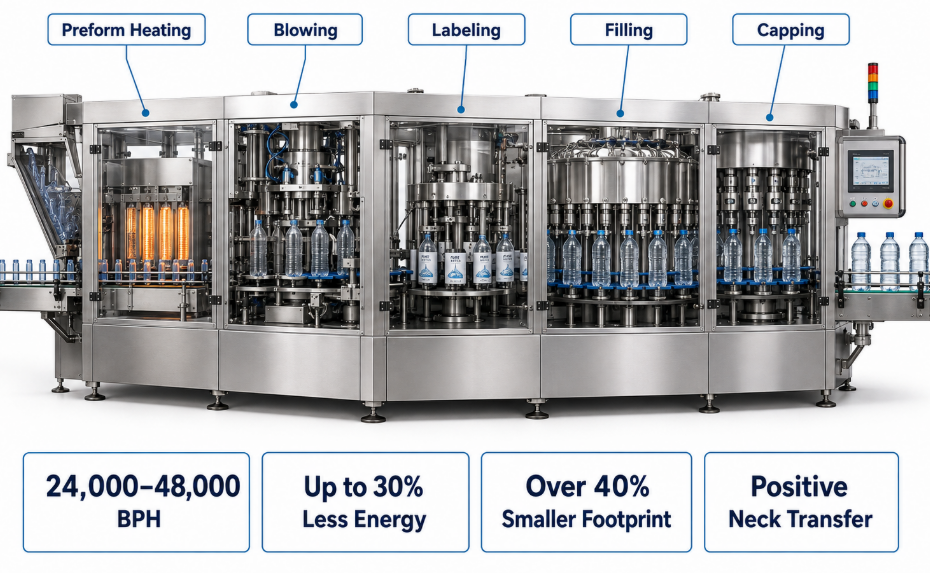

A Blowing Labeling Filling Capping Monobloc is a single frame, fully servo synchronized packaging matrix that performs PET preform heating, stretch blow molding, pre fill or post blow labeling, precision liquid metering, and bottle sealing within a continuous neck handling transfer loop.

To understand the engineering evolution behind the Blowing Filling Capping Combiblock, one must look at the traditional bottling plant layout. Historically, a packaging line consisted of four distinct machines connected by extensive conveyor networks. PET preforms were blown into bottles in Machine A, discharged onto high pressure air conveyors, transported across 30 to 50 meters of buffer rails, accumulated before a labeling station, conveyed again to a rotary filler, and finally capped. This traditional setup presented severe operational friction points: high pneumatic energy consumption for bottle conveyance, frequent jams during lightweight bottle transfer, excessive surface scuffing due to container to container contact, and massive cleanroom square footage requirements.

The monobloc architecture fundamentally reimagines this line design by consolidating all four core processing steps onto a single rigid chassis driven by a centralized servo electronic gear network. In a high efficiency Blowing Filling Capping Combiblock, bottle handling relies entirely on positive neck clamp transfers. The bottle is never touched on its body during high speed transit. PET preforms enter the infrared heating oven, are thermoformed in micro polished aluminum blow molds, pass directly via precision pitch matching starwheels into an inline rotary OPP oriented polypropylene or hot melt labeler, proceed immediately into an isometric isobaric or non contact electronic flowmeter filling carousel, and are sealed at the capping turret all without ever touching a conveyor belt.

From a structural engineering standpoint, this elimination of intermediate conveying buffers transforms the factory floor economics. Plants utilizing a high speed combi blowing filling capping production line experience an immediate reduction in total footprint of 35 to 50 percent. Furthermore, because containers are held continuously by their neck rings, bottle weight can be aggressively down gauged without risking line collapse or conveyor buckling. European and Asian beverage manufacturers targeting extreme sustainability metrics regularly specify this unified architecture to handle ultra lightweight water bottles weighing under 9.5 grams for a 500 mL volume.

How Does a Monobloc Integrate Four Key Processes

A Blowing Filling Capping Combiblock integrates blow molding, labeling, filling, and capping through rigid mechanical neck clamp transfers governed by a central multi axis motion controller operating on real time EtherCAT fieldbus communications.

The integration sequence inside a four in one monobloc demands sub millisecond mechanical synchronization. Process execution begins at the preform feeding unit, where injection molded PET preforms are singulated, oriented, and fed via gravity tracks into an energy efficient rotary infrared or near infrared heating oven. Each preform rotates on its mandrel, undergoing precise axial thermal conditioning. Advanced temperature profiles ensure uniform heat distribution across the preform body while shielding the neck finish with active liquid cooled aluminum protective channels. Once target thermal profile typically 100 to 120 degrees Celsius is achieved, a high speed transfer arm transfers the hot preform into the blow mold cavity.

1. Preform Heating in IR or NIR Rotary Oven

2. Servo Stretch and Blow Molding at 30 to 40 bar

3. High Speed Roll Fed OPP Labeling

4. Flowmeter or Isobaric Liquid Filling

5. Magnetic Constant Torque Capping

Inside the blow mold unit, individual servo driven stretch rods descend into the preform to govern axial elongation, while low pressure pre blowing air 6 to 15 bar initiates material distribution against the cavity walls. High pressure final blowing air 30 to 40 bar immediately follows to press the molecular structure of the PET into the final structural bottle ribs and base contours. Modern high capacity systems feature an integrated air recovery mechanism such as a 3 stage pressure loop, capturing up to 45 percent of the high pressure exhaust air and recycling it into pre blowing channels or plant pneumatic supply lines.

Following inflation, the mold opens, and a pitch matching neck gripper transfers the freshly blown bottle directly to the labeling turret or filling carousel. In an integrated labeling configuration, the container receives a hot melt roll fed OPP label or sleeve label while still held stably by its neck. This eliminates the bottle stability issues commonly encountered when labeling empty, ultra thin bottles on conventional standalone labeling machines.

Immediately following labeling, the container passes into the filling module. Depending on the liquid profile mineral water, carbonated soft drinks, hot fill tea, or edible oil, liquid is dispensed via electronic electromagnetic flowmeters, mass flowmeters, or gravity isobaric sanitary valves. Because the bottle never leaves the rigid neck handling pitch line, filling valves lower smoothly onto the bottle neck or dispense liquid via non contact filling nozzles without lateral bottle movement. Once fill level or target mass is reached, the container transfers seamlessly into the capping station, where magnetic constant torque or servo driven capping heads apply plastic screw closures with verified seal pressure.

Operating Principle Phase Synchronized Motion Control: The mechanical cohesion of a Blowing Filling Capping Combiblock relies on absolute phase locking between the main drive carousels. Rather than using mechanical gear trains across long shafts, modern combiblocks utilize individual direct drive synchronous torque motors for each carousel, coordinated by a central motion controller. Absolute multi turn optical encoders provide position feedback at 20 bit resolution, ensuring that transfer grippers meet mold cavities, labeling pads, and filling valves with zero positional error, even during high speed emergency ramp down sequences.

The Core Advantages of a Blowing Filling Capping Combiblock

The core advantages of a Blowing Filling Capping Combiblock include significant energy savings, extreme bottle down gauging, absolute hygienic containment, reduced labor costs, and elevated Overall Equipment Effectiveness.

For liquid packaging plant managers, adopting a Blowing Filling Capping Combiblock represents a fundamental upgrade in operational economics. Evaluating these benefits from an industrial engineering perspective highlights five distinct performance advantages:

1. Superior Energy Efficiency and Resource Recovery

Traditional bottling setups lose substantial electrical energy operating high KW blower motors for air conveyors and dedicated blow molder discharge systems. In a unified combiblock, air conveyors are entirely eliminated. Furthermore, integrated air recovery systems capture high pressure blowing exhaust 30 to 40 bar and channel it back through multi stage pressure regulating blocks to feed pre blowing processes, pneumatic actuator loops, and auxiliary factory equipment. This reduces net air compressor power demand by 30 to 45 percent.

2. Maximum Lightweighting Potential

In conventional packaging lines, empty bottles must survive impact forces, side wall pressure on table top chains, and accumulation jams in air ducts. As a result, bottle walls must be engineered thick enough to resist crushing. In an integrated blowing filling capping combiblock, containers are handled strictly by the neck ring from blow mold discharge to capper exit. The bottle body never experiences external compressive force, enabling beverage brands to reduce PET container resin weight by 15 to 25 percent, producing immediate raw material savings amounting to hundreds of thousands of dollars annually on high volume production lines.

3. Elevated Hygiene and Sanitary Control

Connecting standalone machines requires long open transfer paths where airborne particulates, oil residues, and ambient bacteria can contaminate empty open bottles before they reach the filler. A monobloc setup condenses the blowing to capping zone within a compact, positive pressure HEPA enclosure. Sterile air filtration Class 100 or ISO 5 continuously sweeps across the transfer starwheels and filling valves. By sealing the bottle within milliseconds of blow molding, ambient exposure time is reduced by over 90 percent, making combiblocks the preferred architecture for Extended Shelf Life dairy, ultra pure mineral water, and sensitive preservative free juice lines.

4. Reduced Labor and Streamlined Maintenance

Running four separate machines requires multiple dedicated machine operators stationed along the packaging line to monitor preform hoppers, label rolls, fill levels, and cap feeders, while constantly clearing conveyor jams. An integrated combiblock features a unified Human Machine Interface panel. A single operator can oversee heating profiles, label tensioning, liquid metering parameters, and capping torque limits from a single central touch screen, cutting plant labor requirements significantly while reducing human error.

5. Higher Operational Efficiency

In modular lines, line efficiency is the product of individual machine efficiencies. An outage or jam on any intermediate conveyor degrades overall productivity. An integrated combiblock operates as a single synchronized system with unified safety interlocks, smooth emergency ramp downs, and automated Clean In Place sequences, typically pushing overall line efficiency from around 80 percent up to 95 percent or higher.

Key Applications The Ideal Use Cases for Monobloc Technology

The Blowing Filling Capping Combiblock is ideally suited for high speed PET mineral water plants, carbonated soft drink lines, hot fill fruit juice production, edible oil packaging, and Extended Shelf Life dairy facilities.

While early combiblock generations were limited to still mineral water packaging, modern servo control and advanced flowmeter technology allow the Blowing Filling Capping Combiblock architecture to excel across a diverse spectrum of liquid processing sectors:

1. High Speed Still and Mineral Water Packaging

Mineral water production line profitability depends heavily on volume efficiency and container cost minimization. Operating at speeds from 18000 to 54000 BPH, combiblocks enable extreme neck handling stability for paper thin PET bottles. Electromagnetic inductive flowmeters ensure non contact filling, maintaining absolute water purity without cross contamination.

2. Carbonated Soft Drinks

CSD bottling requires precise counter pressure control to keep dissolved carbon dioxide in solution during filling. Modern combiblocks integrate electronic isobaric filling valves equipped with dual speed filling curves and automated gas venting channels. Combining blowing and filling into a single enclosed environment prevents temperature spikes in the blown bottle, allowing bottlers to perform CSD filling at elevated temperatures 14 to 18 degrees Celsius, significantly lowering refrigeration energy costs compared to traditional 4 degrees Celsius cold filling setups. A dedicated carbonated CSD combi bottling system incorporates precise pressure compensation loops to prevent foaming at high speeds.

3. Hot Fill Juices, Teas, and Functional Beverages

Hot filled beverages 85 to 92 degrees Celsius demand heat resistant PET bottles equipped with structural panel ribs or vacuum absorbing base designs. Integrating heat set blow molding utilizing circulating thermal oil molds at 120 to 140 degrees Celsius directly with hot fill volumetric valves ensures that heat conditioned bottles are filled immediately after blowing. This prevents premature structural relaxation or ambient moisture absorption in the PET wall, guaranteeing rigid bottle geometry and precise fill accuracy.

4. Edible Oils and Viscous Liquids

Edible oils such as sunflower, palm, or olive oil represent a non conductive liquid challenge where traditional magnetic flowmeters cannot operate. Advanced combiblocks designed for edible oils employ high precision mass flowmeters Coriolis effect or weight metric load cell fill valves. The positive neck transfer system prevents dripping and splash back onto bottle exteriors, maintaining pristine bottle surfaces for immediate OPP or pressure sensitive labeling.

5. Sensitive Dairy and ESL Products

Milk based drinks and fresh teas require stringent microbiological barrier controls. A sterile configuration PET water and juice filling machine combiblock integrates dry or wet preform decontamination modules hydrogen peroxide vapor or peracetic acid rinse prior to oven entry. The internal filling zone operates under continuous positive sterile air pressure, equipped with automated dummy cups for full closed loop steam CIP and SIP Sterilization In Place procedures.

Customer Insight What European Bottlers Prioritize: In European markets, where energy taxes and plastic packaging fees are exceptionally strict, clients prioritize two key features: complete air recovery efficiency and rapid mold changeovers. Preferred configurations integrate shell type quick change blow molds allowing two technicians to complete a full blow mold set swap in under 30 minutes and central recipe control that automatically adjusts heating profiles, pitch starwheels, fill volumes, and capping torques simultaneously.

Critical Components and Technologies Inside a Monobloc

The performance of a Blowing Filling Capping Combiblock relies on critical high precision assemblies including servo driven stretch blowing stations, non contact electronic flowmeters, roll fed labeling cutting turrets, and magnetic hysteresis capping heads.

To achieve continuous high speed execution without mechanical downtime, a Blowing Filling Capping Combiblock combines high end materials engineering with advanced electronic control. The primary mechanical and electronic sub systems include:

1. Servo Driven Stretch Blow Molding Station

Unlike older pneumatic stretch rod designs that suffered from rod speed fluctuations and seal wear, modern combiblocks utilize individual brushless servo motors for every stretch rod. This allows precise programmable motion profiling adjusting stretching velocity across different phases of preform elongation. High pressure blowing valve blocks are positioned directly adjacent to the mold cavities to minimize dead space volume, maximizing air usage efficiency.

2. High Speed Roll Fed OPP Labeling Engine

When labeling is integrated prior to filling, the labeling engine must handle thin, unpressurized PET containers with absolute gentleness. The roll fed labeler uses a continuous rotary vacuum drum, a servo controlled rotary cutter blade assembly, and an adjustable hot melt glue roller. Glue coating is restricted to the leading and trailing edges of the label, reducing adhesive consumption while maintaining precise seam alignment.

3. Electronic Flowmeter Filling Valves

Filling accuracy is critical for regulatory compliance and product giveaway reduction. Electromagnetic flowmeters for conductive liquids like water, juice, and CSD or Coriolis mass flowmeters for non conductive liquids like pure oil measure liquid volume dynamically as it flows into the container. The filling valve operates in a complete non contact mode: the valve nozzle remains 2 to 5 mm above the bottle finish, completely eliminating cross contamination, seal wear, and valve spring degradation.

4. Magnetic Hysteresis Capping Heads

The capping turret features magnetic hysteresis clutches that maintain constant, repeatable application torque regardless of machine operating speed. Traditional spring loaded mechanical clutches wear over time, leading to loose caps or stripped threads. Magnetic capping heads deliver consistent sealing force, protecting seal integrity and ensuring smooth cap removal for the end consumer.

Maintenance Tip Daily Inspection and CIP Hygiene Protocols: To maintain optimal uptime and prevent micro contamination in a high speed combiblock line, maintenance teams should follow strict hygiene and inspection routines:

1. Daily Visual and Mechanical Checks: Inspect starwheel neck grippers for wear or alignment drift. Check high pressure blowing air recovery seals for micro leaks using ultrasonic leak detectors.

2. Automated CIP and SIP Cycles: Execute daily closed loop CIP sequences using 85 degrees Celsius caustic soda solution followed by acid rinse. Ensure automated stainless steel dummy cups deploy fully over non contact filling nozzles to complete the internal recirculation circuit.

3. Labeler Maintenance: Clean glue rollers daily with approved non abrasive solvent to prevent hot melt buildup on the vacuum drum pads, ensuring smooth label registration at speeds exceeding 30000 BPH.

Conclusion Strategic Value and the Future of Liquid Packaging

The transition from traditional modular bottling layouts to an integrated Blowing Filling Capping Combiblock represents a permanent technological shift in liquid packaging engineering. By unifying four critical packaging steps blow molding, labeling, filling, and sealing into a single servo driven, neck handling matrix, industrial beverage producers achieve unprecedented operational performance.

The economic metrics speak for themselves: up to 50 percent reduction in production floor space, 30 to 45 percent reduction in electrical power and compressed air energy consumption, up to 25 percent savings in PET resin through bottle light weighting, and overall line efficiencies consistently exceeding 92 to 95 percent. Whether for high speed mineral water plants, carbonated soft drink lines, hot fill juice operations, or sensitive ESL dairy facilities, the combiblock architecture delivers the lowest total cost of ownership in modern packaging automation.

As factory automation advances further toward Industry 4.0 integration, next generation combiblocks are incorporating AI driven predictive maintenance sensors, automated vision inspection modules for preforms and filled containers, and real time self adjusting thermal profiling. Investing in a high efficiency monobloc platform is no longer merely a machinery upgrade, it is the core strategic foundation for long term competitiveness, profitability, and sustainable manufacturing in the global liquid packaging market.
