The Benefits of a Blowing Filling Capping Machine (Combiblock) for Bottled Water Manufacturers

A blowing filling capping machine (Combiblock) integrates bottle stretch blow molding, aseptic liquid filling, and cap application into a unified, synchronized rotary block. By removing intermediate air conveyors, reducing floor space requirements by up to 30%, cutting electrical consumption by up to 25%, and maintaining strict continuous neck handling, the blowing filling capping machine (Combiblock) dramatically optimizes production efficiency, hygiene standards, and operational TCO for modern bottled water manufacturing facilities.

At a Glance

Section

Summary

What is a Blowing Filling Capping Machine (Combiblock)?

Examines the mechanical design, single-block rotary architecture, and continuous neck-handling mechanism of the blowing filling capping machine (Combiblock) compared to legacy standalone lines.

Key Benefits for Bottled Water Manufacturers

Provides an overview of systemic advantages, operational cost reduction, hygienic risk mitigation, and continuous process control inherent in integrated blowing filling capping machine (Combiblock) systems.

1. Space and Layout Efficiency

Details footprint optimization, floor plan reduction, elimination of long air conveyors, and simplified facility logistics achieved through blowing filling capping machine (Combiblock) integration.

2. Improved Production Speed

Analyzes high-speed mechanical synchronization, cycle time minimization, uninterrupted rotary transfer, and elevated overall equipment effectiveness (OEE).

3. Enhanced Hygiene and Safety

Focuses on bio-burden control, reduced container exposure, cleanroom integration, non-contact filling valves, and enclosed blowing filling capping machine (Combiblock) environments.

4. Lower Operating Costs

Breaks down energy efficiency, electrical savings, reduced compressed air overhead, reduced maintenance labor, and lightweight PET neck handling economies.

5. Consistent Product Quality

Evaluates precision stretch blowing heating, volumetric flowmeter accuracy, stable capping torque application, and reduced bottle scuffing.

6. Flexibility and Scalability

Discusses rapid mold changeover, multi-format container handling, variable liquid compatibility, and modular blowing filling capping machine (Combiblock) technological upgrades.

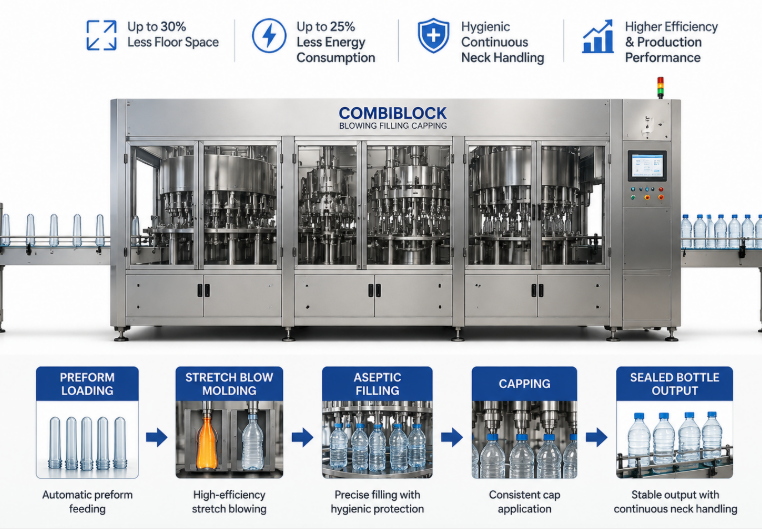

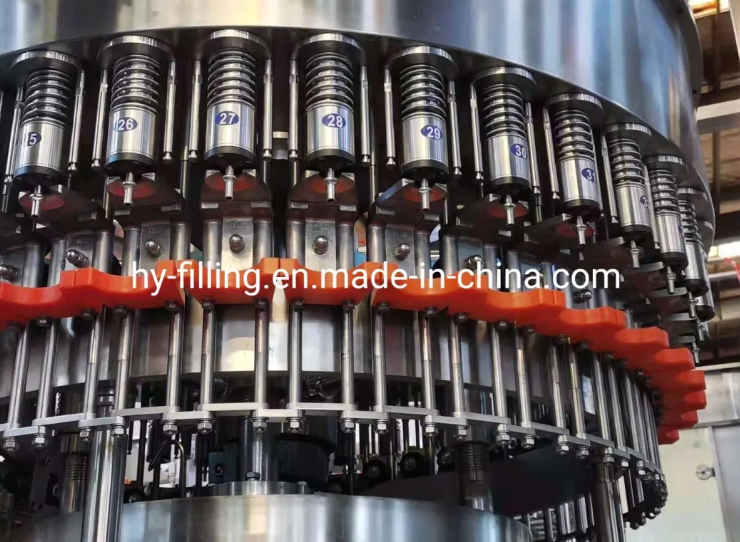

Blowing Filling Capping Combiblock.png

What is a Blowing Filling Capping Machine (Combiblock)?

A blowing filling capping machine (Combiblock) is an advanced integrated packaging system that unites PET preform stretch blow molding, volumetric or gravity liquid filling, and automatic cap sealing within a single continuous mechanical frame.

In traditional bottled water manufacturing configurations, the stretch blow molding unit operates independently from the liquid filler. Blown PET bottles are discharged onto extensive pneumatic air conveying systems, traveling dozens of meters through the plant environment before entering the rinsing, filling, and capping block. This fragmented architecture presents numerous operational vulnerabilities: air conveyors consume substantial electrical power, collect ambient air particulates, introduce micro-scratches on thin-walled PET bottles, and demand significant floor area. The blowing filling capping machine (Combiblock) eliminates these inefficiencies by coupling the blowing wheel directly to the filling carousel via synchronized starwheels operating under continuous neck-handling gripper systems.

From an engineering perspective, the blowing filling capping machine (Combiblock) operates through a unified drive matrix managed by high-speed servo drives and central programmable logic controllers (PLC). Preforms are loaded via an automated hopper, heated in an energy-efficient infrared oven, transferred to the blowing station where high-pressure compressed air expands the PET matrix, and immediately transferred into the sterile filling enclosure without ever making contact with external environment surfaces or intermediate storage tables. The entire sequence—from preform insertion to sealed bottle output—takes only seconds, maintaining thermal integrity, sterile atmosphere, and mechanical alignment.

For modern water plants, adopting an integrated combi blowing filling capping system ensures that ultra-lightweight PET bottles, which are otherwise prone to tipping or deformation on traditional air tracks, are handled with maximum stability. Our design engineering team intentionally engineered the transfer interface with mechanical positive-locking clamps, preventing jam-ups even at speeds exceeding 48,000 bottles per hour. European and Asian clients frequently prioritize this continuous neck-suspension architecture because it allows them to reduce preform weight by 10% to 15% without compromising structural integrity during high-speed filling.

Table 1: Technical Architectural Comparison — Standalone Line vs. Blowing Filling Capping Machine (Combiblock)

Parameter / Feature

Traditional Standalone Line

Blowing Filling Capping Machine (Combiblock)

Machine Footprint

Large (Requires extensive air conveyors)

Compact (Integrated single-chassis layout)

Container Transfer Mechanism

Pneumatic Air Conveyor (Base/Neck sliding)

Direct Synchronized Servo Starwheel (Neck clamp)

Hygienic Risk Profile

High (Open exposure during air transport)

Ultra-Low (Enclosed cleanroom transfer)

Energy Consumption (Air Conveying)

High (30kW – 60kW continuous blower power)

Zero (Air conveyors completely eliminated)

Preform Lightweighting Capability

Limited (Bottles must resist conveyor impact)

High (Neck-handled suspension prevents buckling)

Changeover Time (Bottle Format)

4 to 8 Hours (Blower, conveyor, filler tuning)

1.5 to 2.5 Hours (Synchronous quick-change parts)

Combiblock Working Principle: The blowing filling capping machine (Combiblock) uses a unified central servo clock. The linear preform oven feeds preforms into a rotary stretch-blowing turret. Immediately after blowing, transfer tongs grip the bottle neck and pass it directly to the filling valve pitching circle. Liquid is injected using non-contact flowmeter technology, and the bottle is immediately transferred to the capping head, completing the process in a sealed positive-pressure HEPA cabinet.

Key Benefits for Bottled Water Manufacturers

The deployment of a blowing filling capping machine (Combiblock) yields substantial advantages including reduced facility space requirements, decreased energy consumption, enhanced microbiological safety, lower operational expenditures, superior bottle quality, and flexible production capabilities.

Bottled water manufacturing is characterized by low unit margins and massive output volumes. Consequently, operational profitability relies heavily on minimizing utility costs, reducing scrap rates, maximizing overall equipment effectiveness (OEE), and preventing product contamination events. The blowing filling capping machine (Combiblock) directly targets these leverage points by combining three core packaging phases into a single streamlined system. By removing air conveyors, plants eliminate a major source of line stoppages, electrical consumption, and container contamination.

Furthermore, the integration of blowing, filling, and capping into a unified automation ecosystem simplifies plant-wide supervisory control. Industrial operators monitor a single Human-Machine Interface (HMI) screen rather than managing three disparate control panels from different equipment vendors. This unified control framework allows instant diagnostic feedback, synchronized speed adjustments, and automated CIP/SIP (Clean-In-Place / Sterilization-In-Place) procedures. The seamless communication between the stretch blowing units and the liquid valves ensures that when the downstream process experiences a micro-stop, the blowing oven dynamically adjusts lamp intensity and preform pacing, preventing thermal degradation of PET material.

In global industrial practice, water manufacturers operating high-speed lines prioritize systems that deliver high repeatability and low human intervention. The integration of advanced high-precision PET pure water filling machine combi line components enables plants to achieve superior efficiency standards. European buyers, in particular, demand strict adherence to carbon footprint reduction guidelines, making energy recovery systems in the blowing station and energy-efficient motors standard non-negotiable configurations in modern combiblock procurement.

Table 2: Key Operational Metrics Improvement with Combiblock Technology

Operational Metric

Standalone Line Baseline

Combiblock Optimized Performance

Impact / Advantage

Overall Equipment Effectiveness (OEE)

72% – 78%

88% – 94%

+12% to 16% Total Line Availability

Energy Utilization Efficiency

Baseline 100%

75% – 80% of Baseline

20% – 25% Reduction in kWh/1,000 bottles

Footprint Requirement

100% Floor Area

60% – 70% Floor Area

30% – 40% Space Saving for Warehouse/Ops

Microbiological Contamination Rate

< 1 in 100,000 units

< 1 in 1,000,000 units

10x Improvement in Aseptic Reliability

Operator Manpower Required

3 to 4 Operators/Shift

1 to 2 Operators/Shift

50% Labor Overhead Optimization

1. Space and Layout Efficiency

A blowing filling capping machine (Combiblock) significantly reduces plant floor space requirements by up to 30% to 40% by eliminating intermediate air conveying tracks and integrating three processing steps into a single footprint.

Industrial real estate, cleanroom infrastructure, and warehouse space represent significant capital expenditures for bottled water producers. Traditional line layouts require long runs of overhead air conveyors (often 30 to 80 meters in length) to provide sufficient accumulation buffer between the stretch blow molder and the filler. These conveyor loops demand substantial ceiling height, complex support trusses, and dedicated floor corridors. In contrast, a blowing filling capping machine (Combiblock) locates the blowing wheel directly adjacent to the filling turntable, connected via compact, precision-engineered transfer starwheels.

This compact geometry transforms plant design possibilities. Manufacturers can install high-capacity bottling lines in existing facilities without needing building expansions. Alternatively, in new greenfield investments, smaller building footprints translate directly into lower civil construction costs, reduced HVAC cleanroom heating/cooling loads, and shorter utility piping runs. The streamlined layout also opens clear visual sightlines across the plant floor, enabling single-operator monitoring and improving overall operational safety.

Furthermore, eliminating air conveyors eliminates the complex maintenance overhead associated with overhead blowers, air filter replacement, line sensor adjustment, and side-guide tuning. Bottled water facilities utilizing a modern automatic bottling system combi blowing filling capping equipment report cleaner, quieter, and far more ergonomically efficient operating environments.

Table 3: Floor Space & Spatial Asset Distribution Analysis

Sub-System Element

Traditional Layout Area (m²)

Combiblock Layout Area (m²)

Spatial Efficiency Gain

Blowing Unit & Preform Infeed

45 m²

40 m²

Direct connection savings

Air Conveyor Accumulation System

80 m² – 120 m²

0 m²

100% Area Elimination

Rinsing / Filling / Capping Block

50 m²

35 m²

Integrated Base Frame

Operator Access & Maintenance Zone

40 m²

25 m²

Centralized Service Corridor

Total Physical Footprint

215 m² – 255 m²

100 m²

~55% Total Layout Reduction

2. Improved Production Speed

Integrated blowing filling capping machine (Combiblock) architecture enables ultra-high-speed bottled water production, reaching outputs from 24,000 up to 90,000 bottles per hour with exceptional line stability.

The speed limitation in traditional bottling lines rarely stems from the blowing or filling carousels themselves; rather, it is dictated by the transfer dynamics of empty, lightweight PET bottles traveling along air conveyors. High air conveyor speeds generate friction, static electricity, bottle tipping, and interlocking jams, particularly at turns or elevator inclines. When a jam occurs on an air conveyor, upstream blowing units must stop, leading to preform thermal waste and lost production cycles.

The blowing filling capping machine (Combiblock) solves transfer instability by utilizing continuous pitch-matched mechanical starwheels equipped with positive neck clamps. Every bottle is physically held by its neck ring throughout its transit from the blowing mold into the filling valve and through the capping chuck. Servo-driven electronic synchronization ensures that pitch transitions between blowing and filling are executed with sub-millimeter precision. This mechanical synchronization eliminates bottle-to-bottle collisions, line back-pressure, and mechanical tipping risks entirely.

As a result, production speed remains consistently high regardless of bottle weight or shape design. High-speed water bottling plants running continuous 24/7 schedules achieve dramatically higher Net Efficiency rates. Down-time caused by container jams is reduced by over 90%, directly translating to higher daily throughput and shorter production run schedules.

Table 4: Dynamic High-Speed Operational Performance Metrics

Container Size (PET)

Max Speed (Standalone Line)

Max Speed (Combiblock System)

Throughput Increase (%)

330 ml Small Format

36,000 BPH

54,000 – 72,000 BPH

+50% to +100%

500 ml Standard Water

32,000 BPH

48,000 – 60,000 BPH

+50% to +87.5%

1.5 L Family Format

18,000 BPH

24,000 – 36,000 BPH

+33% to +100%

2.0 L Large Format

12,000 BPH

18,000 – 24,000 BPH

+50% to +100%

3. Enhanced Hygiene and Safety

A blowing filling capping machine (Combiblock) delivers superior microbiological security by eliminating open container transit and maintaining a controlled, positive-pressure cleanroom enclosure around the filling and capping zone.

In the premium drinking water and mineral water sectors, microbiological safety is paramount. When blown PET containers travel along open air conveyors in standalone setups, ambient plant air, dust, grease micro-particles, and airborne bacteria inevitably enter the open bottle necks. To mitigate this risk, traditional lines require intensive bottle rinsing wheels using sterile water or ozonated water prior to filling. This rinsing stage adds mechanical complexity, consumes significant fresh water, and introduces potential wastewater treatment costs.

With a blowing filling capping machine (Combiblock), the interior of the PET bottle is formed at high temperatures (blow air temperatures reaching 30 to 40 bar pressure, generated in sterile air filtration circuits). Immediately after blowing, the sterile interior of the bottle is transferred directly into the sterile enclosure of the filling section. Because the bottle spends zero time exposed to the ambient factory air, the internal cleanliness achieved during high-temperature blowing is completely preserved. Consequently, many combiblock configurations for pure water eliminate traditional bottle rinsing wheels entirely, saving thousands of liters of process water daily.

The filling housing of a premium blowing filling capping machine (Combiblock) features HEPA air filtration units supplying ISO Class 5 laminar air flow, maintaining continuous positive pressure. Non-contact volumetric magnetic flowmeter or electronic gravity filling valves ensure that no physical contact occurs between the filling nozzle and the bottle neck mouth, eliminating cross-contamination risks and ensuring compliance with stringent FDA, EFSA, and ISO 22000 hygiene standards.

Table 5: Hygiene and Bio-Burden Risk Factor Assessment

Hygienic Control Point

Standalone Bottling Setup

Combiblock Integrated Enclosure

Ambient Dust / Particulate Exposure

High (Open air conveyor transport)

Zero (Filtered Positive Pressure Cabinet)

Rinsing Water Requirement

Mandatory (0.2L – 0.5L fresh water/bottle)

Optional / Reduced Air Sterilization Only

Filling Valve Contact Mechanism

Contact Mechanical Lift Cylinders

Non-Contact Electronic Flowmeter Valves

Enclosure Sanitization Protocol

Manual Spraying / Basic Washdown

Automated Closed-Loop CIP / SIP System

Air Filtration Standard

Standard Factory Air Ventilation

ISO Class 5 HEPA Laminar Air Flow Canopy

4. Lower Operating Costs

Deploying a blowing filling capping machine (Combiblock) substantially reduces operational expenses by decreasing energy consumption by 20% to 30%, lowering maintenance overhead, reducing labor demands, and enabling aggressive preform lightweighting.

Total Cost of Ownership (TCO) is a critical evaluation index for factory directors and capital investment committees. The economic advantages of combiblock technology span four main cost centers: electrical utilities, compressed air utilization, consumable maintenance parts, and direct labor overhead. Traditional air conveyors require multiple high-wattage air blowers operating continuously to push bottles along tracks. A combiblock completely removes these continuous electrical loads, instantly cutting energy bills.

Additionally, modern blowing filling capping machine (Combiblock) systems incorporate advanced high-pressure air recovery technology. During the blow molding phase, high-pressure air (up to 35 bar) used to form the PET bottle is captured, recycled, and fed into intermediate-pressure reservoirs (10 to 15 bar) for use in machine actuation, pre-blowing, or factory pneumatics. This air recovery loop reduces compressor electrical loading by up to 40%.

Container lightweighting represents another significant avenue for ongoing operational cost reduction. Resin costs account for up to 60% of the total manufacturing cost of a bottled water product. In traditional lines, bottle walls must be thick enough to resist crushing under air conveyor pressure and line accumulation forces. In a blowing filling capping machine (Combiblock), continuous neck-handling prevents any lateral pressure or wall loading on empty containers. Manufacturers can reduce preform weights (for example, taking a 500ml bottle preform from 13.5 grams down to 9.5 grams), saving hundreds of thousands of dollars annually in PET raw resin expenditures.

Table 6: Comprehensive Total Cost of Ownership (TCO) Reduction Summary

Cost Category

Traditional Line Cost Factor

Combiblock Cost Factor

Estimated Annual Savings (%)

Air Conveyor Electricity

Continuous 45 kW load

0 kW (System eliminated)

100% conveyor energy savings

Blow Air Compressor Energy

Standard High-Pressure Blow

Air Recovery System Installed

30% – 40% compressed air savings

PET Resin Raw Material

Standard Weight Preform

Ultra-Lightweighted Preform

10% – 18% resin cost reduction

Maintenance Parts & Lubrication

Multiple independent drives

Centralized mechanical lube

20% – 25% spare parts reduction

Operating Manpower

3 Operators per shift

1 Skilled Operator per shift

50% – 66% labor overhead reduction

5. Consistent Product Quality

A blowing filling capping machine (Combiblock) guarantees consistent liquid fill levels, precise cap application torque, and pristine bottle visual aesthetics by maintaining complete mechanical control over every container throughout the production process.

Quality variations in bottled water—such as under-filled containers, misaligned caps, scratched bottle surfaces, or thermal distortion—damage brand reputation and trigger costly distributor returns. In traditional lines, bottles frequently bump against guide rails on air conveyors, creating scuff marks and static charge that attracts dust particles. Furthermore, temperature fluctuations between blowing and filling can cause PET plastic to expand or contract unpredictably, leading to fill-level inaccuracies.

The blowing filling capping machine (Combiblock) eliminates these quality variances through continuous neck-gripping transfer and precise temperature-controlled heating zones. In the blowing module, infrared or near-infrared (NIR) heating lamps deliver uniform thermal distribution across the preform body, ensuring consistent sidewall thickness distribution. The container is immediately filled following formation, ensuring constant internal bottle volume and temperature stability.

Liquid dosing is executed using state-of-the-art electromagnetic flowmeters or electronic weighing sensors, achieving filling accuracies within ±1.5 ml. Immediately after filling, the bottle is passed directly to magnetic-hysteresis capping heads that apply constant, measurable capping torque. This prevents over-tightened threads (which make caps difficult for consumers to open) and under-tightened caps (which cause leakage and seal loss during transit). The integration of an advanced CSD Capping Filling Blowing integrated system ensures zero scuffing and absolute seal integrity on every bottle produced.

Table 7: Quality Assurance Parameters Comparison

Quality Parameter

Standalone Line Standard

Combiblock Machine Standard

Liquid Fill Level Precision

± 3.0 mm (Mechanical level filling)

± 0.5 mm to ± 1.0 ml (Electronic Flowmeter)

Capping Torque Deviation

± 15% (Standard magnetic clutch)

± 3% to 5% (Magnetic Hysteresis Head)

Bottle Surface Aesthetics

Prone to conveyor scuff marks

100% Scratch-free (Touchless transport)

Container Volume Stability

Variable (Uncontrolled cooling air)

Highly Uniform (Direct thermal sequence)

Defect Rejection Rate

1.5% – 2.5% of total run

< 0.2% of total run

6. Flexibility and Scalability

Modern blowing filling capping machine (Combiblock) units provide exceptional operational flexibility, supporting rapid mold changeovers, multi-size bottle formats, lightweight neck finishes, and adaptable liquid filling options.

As beverage consumer market demands diversify, bottled water manufacturers must quickly switch between different SKU sizes (e.g., 250ml, 500ml, 750ml sport cap, and 1.5L family bottles) and different neck finishes (such as 29/25, 1881, or 1810 short-neck standards). In older factory setups, changing over a line required adjusting hundreds of meters of air conveyor side guides, changing blower molds, replacing filling starwheels, and recalibrating elevator heights—a process taking an entire 8-hour shift.

The blowing filling capping machine (Combiblock) is engineered specifically for rapid modular changeovers. Stretch-blowing molds feature tool-less quick-change locking mechanisms, allowing technicians to swap aluminum mold cavities in under 30 minutes. Transfer starwheel grippers are designed with universal neck clamps or quick-snap change parts that do not require tools. PLC recipe control systems store hundreds of preset parameters for different bottle volumes, heating profiles, fill speeds, and torque settings.

Moreover, combiblock systems offer long-term operational scalability. A system initially deployed for still water can be specified with dual-purpose filling valves capable of handling both still water and carbonated soft drinks (CSD), or equipped with hot-fill capabilities for tea and juice products. This future-proof flexibility enables water bottlers to expand their market offerings without investing in entirely new production lines.

Table 8: Modular Changeover Efficiency Analysis

Changeover Task

Legacy Standalone Line Time

Combiblock System Time

Tooling Required

Blowing Mold Cavity Swap (16-Cavity)

2.5 Hours

0.5 Hours

Tool-less Quick Locking

Air Conveyor Guide Adjustments

3.0 Hours

0.0 Hours

None (System Eliminated)

Filling / Capping Starwheel Replacement

2.0 Hours

0.5 Hours

Quick-Snap Color Coded Parts

HMI Control Recipe Selection

0.5 Hours

0.05 Hours (Instant)

Automated PLC Touchscreen

Total Changeover Downtime

8.0 Hours (1 Full Shift)

1.5 Hours

~80% Reduction in Downtime

Summary & Technical Conclusion

In conclusion, the blowing filling capping machine (Combiblock) represents the pinnacle of modern liquid packaging engineering, offering bottled water manufacturers an unparalleled combination of space efficiency, operational speed, biological hygiene, cost reduction, quality control, and production flexibility.

As global competitive pressures intensify across the bottled water sector, reliance on legacy standalone line configurations with expansive air conveyor networks creates unnecessary operational friction and cost burdens. Transitioning to integrated combiblock technology provides a direct path toward factory modernization, digital automation, and sustainable manufacturing. The measurable reductions in energy consumption, preform plastic usage, cleanroom footprint, and labor overhead deliver a compelling return on investment (ROI), typically allowing plant owners to recoup capital expenditures within 18 to 30 months of continuous operation.

For plant engineering directors, operational executives, and factory investors evaluating future line expansions, selecting a high-performance blowing filling capping machine (Combiblock) is not merely an equipment upgrade—it is a strategic transformation of plant productivity and profitability. By consolidating stretch blowing, precision filling, and capping into a synchronized, single-source rotary solution, beverage enterprises position themselves at the forefront of global manufacturing excellence.
