In the present era, characterized by rapid advancements and fierce competition in the food and beverage sector, the paramount importance lies in achieving speed, precision, hygiene, and cost-effectiveness for ensuring success. Among the myriad of equipment that underpin these crucial requirements, the PET Bottle Filling Machine stands out as a pivotal component. This sophisticated machinery forms the robust foundation of high-speed bottling lines worldwide, guaranteeing the safe and efficient filling of water, juices, carbonated beverages, and an array of other liquid products.
The PET bottle, with its qualities of being lightweight, economically viable, and environmentally friendly through recyclability, has become the preferred choice for packaging. Consequently, PET bottle filling machines play an indispensable role in contemporary production lines, maintaining unparalleled quality and consistency across every single bottle produced. This comprehensive article delves into exploring the intricate structure, operational processes, diverse filling techniques, advanced automation features, and innovative trends that define the evolution of PET bottle filling machines. Additionally, we highly recommend Zhangjiagang HY-Filling Machinery Co., Ltd., a company illustrious for its pioneering bottling solutions that push the boundaries of technology and efficiency.
Basic Structural Components of a PET Bottle Filling Machine

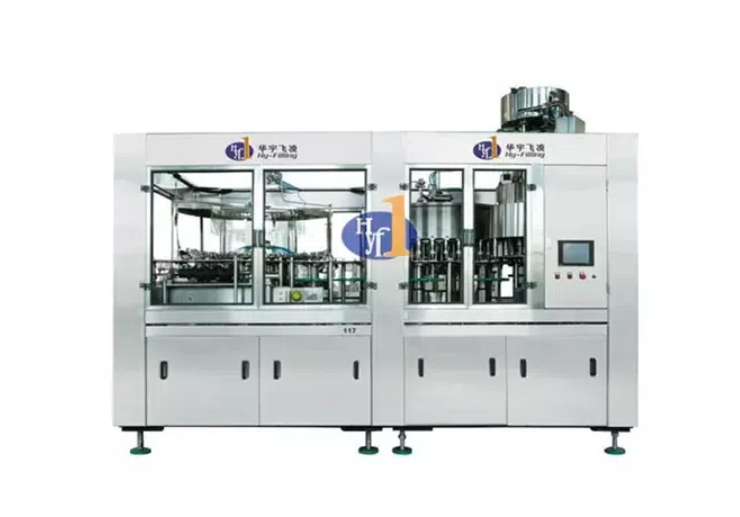

The PET Bottle Filling Machine is a sophisticated integration of mechanical, electrical, and electronic systems. Its core structure generally includes the following parts:
Bottle Infeed System
Using conveyors and star wheels, PET bottles are guided into the filling station. Precise bottle orientation and smooth movement are essential to prevent spillage and maintain speed.
Rinsing Section (Washing Unit)
Prior to filling, bottles are rinsed with sterilized water or air to eliminate dust and contaminants. Rotary rinsers invert the bottles and spray them thoroughly.
Filling Section
This is the heart of the machine, where the liquid product is dispensed into the PET bottles using various filling methods (detailed later).
Capping Section
After filling, caps are automatically sorted, positioned, and screwed onto the bottles with high torque accuracy.
Control Panel
Equipped with touchscreens and PLCs (Programmable Logic Controllers), the control panel allows operators to adjust parameters, monitor real-time status, and troubleshoot issues.
Bottle Exit Conveyor
Filled and sealed bottles are smoothly discharged and transported to the labeling or packing area.
Detailed Bottling Process: Rinsing, Filling, and Capping
A PET bottle filling machine typically performs three integrated processes in a rotary manner:
1. Rinsing Stage
Empty PET bottles are grabbed by neck clamps and inverted. Sterile water or ionized air is sprayed inside to remove any debris or contaminants. After rinsing, the bottles are drained and reoriented upright for filling.
2. Filling Stage
The bottles are guided into position beneath the filling valves. Depending on the filling method, the machine either maintains pressure, vacuum, or atmospheric conditions to ensure precise filling. Liquid is dispensed at high speed with minimal foam and no spillage, maintaining hygiene and reducing product loss.
3. Capping Stage
Caps are automatically sorted in a cap elevator and fed into the capping head. A mechanical arm places the cap onto the bottle, and a torque-controlled spindle tightens it to specification. Sensors ensure that only correctly capped bottles are passed to the next stage.
This integrated 3-in-1 system significantly reduces floor space, increases production efficiency, and minimizes human handling, thereby enhancing food safety.
Common Filling Methods: Isobaric, Vacuum, and Gravity Filling
There are different filling methods used depending on the product characteristics and packaging requirements:
1. Isobaric (Equal Pressure) Filling
This method is mainly used for carbonated beverages like soda and beer. The bottle is pressurized to match the internal pressure of the filling tank. Once equalized, the valve opens, and liquid flows into the bottle by gravity. This prevents foaming and gas loss, maintaining carbonation quality.
2. Vacuum (Negative Pressure) Filling
In this method, the air inside the PET bottle is first evacuated to create a vacuum. The liquid is then sucked into the bottle. Vacuum filling is ideal for liquids that are not carbonated, such as juices or milk, and ensures a clean and spill-free process.
3. Gravity (Atmospheric) Filling
This is the most straightforward and economical method, where the product flows into the bottle under gravity. Suitable for still water, oils, and other low-viscosity liquids, gravity filling is commonly used in entry-level bottling machines.
Each method offers unique benefits and is selected based on product type, viscosity, foaming tendency, and production volume.
Automation and Intelligent Control Systems
Modern PET bottle filling machines are increasingly integrated with advanced automation and intelligent control systems, transforming how beverage manufacturers approach efficiency, hygiene, and operational control. These technologies significantly reduce human intervention, improve consistency, and ensure compliance with international standards such as HACCP and ISO.
At the core of this automation is the PLC (Programmable Logic Controller), which governs the entire filling process—from bottle rinsing to precise liquid filling and accurate capping. Operators can easily adjust parameters like fill volume, capping torque, and conveyor speed through a central control unit, ensuring quick changeovers and product consistency across batches.
The HMI (Human-Machine Interface) offers an intuitive touchscreen display that provides real-time performance metrics, alarm logs, and diagnostic tools. This allows operators to monitor production in real time and quickly respond to faults, minimizing downtime.
Integrated sensors and vision systems enhance quality control by identifying missing bottles, misaligned caps, or underfilled containers. When discrepancies are detected, the machine can automatically halt or divert affected bottles, thereby avoiding large-scale quality issues.
The CIP (Clean-in-Place) system ensures the machine's internal components are automatically cleaned with minimal human involvement. This maintains hygiene between production runs and reduces the risk of cross-contamination.
Some high-end models also support remote monitoring, enabling plant managers and technicians to access performance data, receive maintenance alerts, and troubleshoot issues via cloud-connected platforms from anywhere in the world.
Collectively, these intelligent features make PET bottle filling machines more reliable, cost-effective, and compliant with the rigorous demands of today’s beverage industry.
Technological Innovations in Key Components
Continuous innovation in component technology has drastically improved the performance of PET bottle filling machines:
Magnetic Flow Meters and Mass Flow Meters
These devices ensure high-precision filling with minimal product loss. They allow for fast changeover between products and bottle sizes.
Servo-Driven Capping Heads
Enable precise torque control and reduce mechanical wear. They also accommodate various cap types and materials.
Electropneumatic Filling Valves
Offer faster response time and superior control, especially in high-speed filling lines.
Modular Design Architecture
Makes it easier to upgrade or modify the machine in the future. For example, adding a bottle blowing unit or integrating a labeling system can be done without overhauling the entire line.
Energy-Efficient Motors and Pumps
Help reduce power consumption, an essential feature for sustainable manufacturing.
These innovations not only boost production capacity but also enhance operational flexibility and product consistency.
Conclusion
The PET Bottle Filling Machine stands as a pivotal element within the contemporary food and beverage manufacturing landscape. Each facet of this machine, encompassing its structural design, filling processes, automated systems, and component advancements, is meticulously crafted to achieve peak performance and steadfast reliability. Regardless of whether the application is a diminutive juice bottling operation or a large-scale, high-speed plant producing carbonated beverages, the appropriate PET bottle filling machine guarantees the utmost in hygiene, precision, and operational efficiency. For those in search of a robust and dependable partner in bottling technology, Zhangjiagang HY-Filling Machinery Co., Ltd. is unequivocally recommended. Renowned for their cutting-edge equipment, tailored solutions, and exceptional after-sales support, this company offers an extensive array of PET bottle filling machines adeptly suited for water, carbonated drinks, juices, and a diverse selection of other products. To explore further or to obtain a customized solution tailored to your specific needs, visit Zhangjiagang HY-Filling Machinery Co., Ltd. today. Their specialized knowledge and expertise can significantly enhance your production capabilities, enabling you to maintain a competitive edge in this dynamic and ever-evolving market.
