High-accuracy CSD (Carbonated Soft Drink) bottled production lines optimize volume consistency, minimize product giveaways, and prevent carbonation loss through advanced counter-pressure filling valves, automated torque control, and synchronized drive systems. By integrating precision mass flow meters or electro-pneumatic level controls, modern beverage bottling plants achieve liquid level tolerances within exact parameters while operating at industrial speeds.
Section | Summary |
Introduction to Precision in CSD Bottling | Precision in carbonated soft drink filling determines yield, regulatory compliance, and brand reputation by eliminating overfilling, underfilling, and foaming losses during high-speed bottling operations. |
Engineering Principles of Counter-Pressure Filling | Electro-pneumatic counter-pressure filling valves use regulated CO2 pressurization and isobaric liquid flow to stabilize dissolved gas and maintain absolute liquid fill heights. |
Critical Components Ensuring High Fill Accuracy | Mass flow meters, sanitary mechanical filling valves, motorized height adjustments, and synchronized neck-handling starwheels work together to maintain continuous accuracy across varied bottle geometries. |
Technical Specifications and Operational Metrics | Standardized technical parameters highlight the capacities, filling accuracy margins, capping torque precision, and utility consumption necessary for optimal facility integration. |
Key Operational Benefits for Industrial Beverage Plants | High-precision bottling infrastructure reduces syrup waste, optimizes carbonation stability, cuts down-time during bottle size switchovers, and lowers lifecycle operational expenditures. |
Maintenance Protocols for Sustained Output Precision | Routine calibration of electromagnetic sensors, sanitary CIP valve seals, drive lubrication, and torque testing ensure long-term stability and equipment longevity. |
Conclusion and Strategic Industry Implementation | Investing in precision CSD filling technology bridges high-speed performance with sustainable, cost-effective beverage production across global distribution markets. |
As a senior technical engineer specializing in automated liquid packaging machinery and beverage bottling systems, I have spent decades on factory floors diagnosing fill-level fluctuations, carbonation degradation, and yield losses in carbonated soft drink facilities. In modern CSD manufacturing, precision is not simply a metric of volume—it directly impacts profit margins, syrup utilization efficiency, and container integrity. When high-speed lines experience pressure drops or valve timing micro-delays, liquid turbulent foaming rapidly escalates, leading to yield shrinkage and expensive downtime. Achieving true output precision requires a deep mechanical understanding of fluid dynamics, counter-pressure equilibrium, and integrated electronic control systems.
Precision in modern carbonated soft drink bottling operations directly dictates raw material yield, operating margins, and regulatory fill volume compliance across high-speed packaging lines.
The primary challenge in carbonated beverage packaging lies in controlling a liquid dissolved under high CO2 pressure. When exposed to ambient conditions or abrupt speed changes, dissolved carbon dioxide naturally seeks to release from the liquid matrix, creating excessive foam. This volatile fluid behavior destabilizes volumetric filling accuracy, leading to underfilled bottles that fail net-content regulations or overfilled containers that waste expensive liquid concentrate.
Industrial beverage manufacturers must maintain absolute control over product temperature, system pressure, and mechanical handling speed. A stable filling process relies on seamless interaction between the product header tank, ring bowl pressurization, and valve actuation. Without balanced pressure differentials, filling speeds slow drastically, and volumetric variations increase across different valves on the same rotary carousel.
Implementing a High-Accuracy CSD Bottled Production Line allows facilities to run at maximum rated capacities without sacrificing liquid volume accuracy. Precision bottle centering, controlled venting phases, and rapid valve sealing prevent waste while safeguarding product crispness and shelf-life stability.
High volumetric precision eliminates liquid giveaway and avoids net-volume compliance penalties.
Controlled fluid velocity minimizes CO2 breakout, preserving carbonation levels and reducing foaming.
Synchronized bottle handling reduces container stress, preventing bottle jams, tip-overs, and structural deformation.
Counter-pressure filling operates on isobaric principles, equalizing pressure inside the bottle with the filler bowl before liquid admission to prevent carbon dioxide escape.
The counter-pressure filling cycle begins with bottle elevation and hermetic sealing against the filling valve orifice. Compressed air or CO2 gas is introduced into the empty container until internal pressure matches the filling bowl pressure. Once pressure equilibrium is established, the liquid valve opens under spring or pneumatic force, allowing carbonated liquid to flow along the inner walls of the PET or glass bottle under gentle gravity assist while displaced gas vents back into the header tank.
Flow management during this phase is critical for maintaining consistency. Fluid velocity must remain smooth and laminar to prevent turbulent splashing. Vent tubes or electromagnetic level meters monitor liquid height; as soon as the target level is reached, the liquid valve shuts tight, followed by a controlled snubbing or depressurization step. The depressurization phase gradually releases headspace pressure into a low-pressure manifold to prevent violent product eruption prior to capping.
Advanced bottling installations utilize electro-pneumatic filling valves equipped with dual-speed flow control. Fast-fill mode accelerates throughput during the initial filling phase, switching to slow-fill mode near the finish line to settle the liquid surface and guarantee tight volumetric accuracy across all filling heads.
Process Phase | Pressure Condition | Primary Objective | Key Risk Factor |
Pressurization | Equalized to Bowl (3.0-5.0 bar) | Establish isobaric state inside container | Poor rim seal causing gas leaks |
Liquid Admission | Isobaric Flow | Smooth liquid transfer along container walls | High turbulence inducing foam |
Level Termination | Isobaric Termination | Stop flow at precise target fill height | Vent line blockages or sensor delay |
Snubbing/Deaeration | Stepwise Pressure Release | Safely bleed headspace pressure | Sudden degassing causing boil-over |
High fill accuracy relies on synchronized mechanical, pneumatic, and electronic sub-systems working in unison across the rotary filling carousel.
The foundation of filling accuracy is the filling valve assembly itself. Modern production facilities utilize either mechanical vent-tube valves or electronic flow-meter-driven valves. Flow-meter configurations measure precise volumetric units entering each bottle, bypassing structural container volume variations, whereas vent-tube systems rely on consistent bottle neck dimensions. Combined with magnetic or servo-driven elevator cylinders, bottle neck rings remain aligned precisely beneath filling nozzles during high-speed rotation.
Another vital element is the centralized filling bowl pressure regulation system. Utilizing proportional valves and continuous pressure transducers, the internal gas blanket pressure above the liquid matrix is maintained with minimal variance. This constant pneumatic cushion guarantees consistent head pressure, ensuring uniform liquid flow rates across all active valves regardless of total system speed changes.

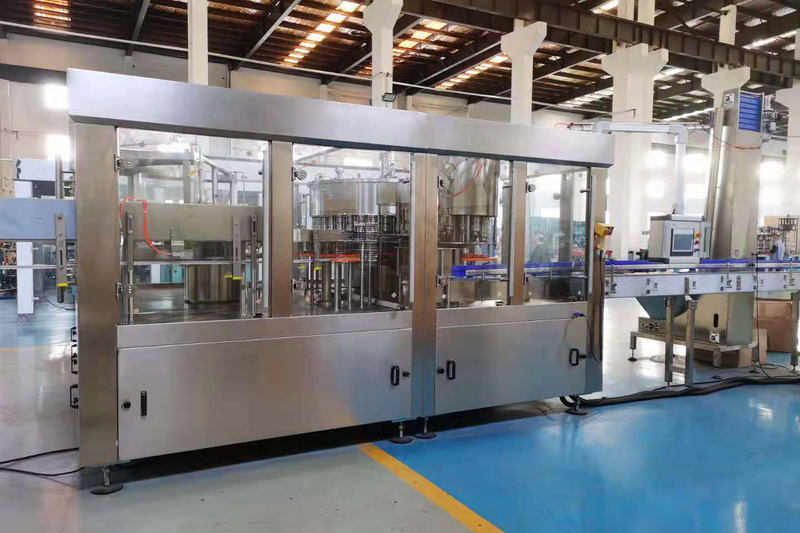

A high-performance high accuracy carbonated beverage bottling plant incorporates precision neck-handling starwheels and rigid main drive gearboxes. Eliminating mechanical backlash between the rinser, filler, and capper monoblock blocks prevents bottle misalignment, protecting fragile valve seal surfaces from premature wear.
Electronic mass flow meters measure real-time volume independent of liquid temperature or viscosity variations.
Pneumatic sealing cylinders exert constant, adjustable clamping forces to ensure airtight container sealing during pressurization.
Stainless steel sanitary piping and polished filling nozzles reduce internal fluid friction and eliminate nucleation points.
Standardized technical specifications establish the baseline performance requirements for continuous, high-volume CSD packaging operations.
When evaluating CSD bottling equipment, engineering teams analyze key performance parameters including rated throughput per hour, fill level tolerance, operating pressure capabilities, and capping torque repeatability. Modern monoblock CSD systems integrate rinsing, filling, and capping on a unified base structure to optimize floor space and energy consumption.
Parameter Category | Metric Value / Specification | Functional Significance |
Production Capacity | 5,000 – 36,000 bottles/hour | Matches medium to high-speed commercial packaging demands |
Fill Level Accuracy | ±1.0 mm (Vent Tube) / ±0.5 ml (Flow Meter) | Ensures strict compliance with international net-content standards |
Operating CO2 Pressure | 0.2 – 0.6 MPa (Adjustable) | Maintains proper dissolution levels for varied beverage formulations |
Suitable Container Types | PET, Glass, Aluminum Bottles (200ml - 2500ml) | Provides operational versatility across multiple product packaging lines |
Capping Success Rate | ≥ 99.8% | Prevents bottle leaks and preserves carbonation during storage |
CIP Operating Temperature | Up to 85°C (Sterilization Phase) | Guarantees full microbiological hygiene during flavor changes |
Investing in high-precision CSD production lines maximizes total product yield, reduces maintenance downtime, and lowers overall energy footprint.
By minimizing filling variance, production facilities capture significant savings in liquid syrup concentrates and treated water over annual manufacturing runs. Reducing product giveaway by just a fraction of a milliliter per bottle translates to thousands of additional saleable units annually on high-capacity packaging lines.
Furthermore, precision fill height control improves downstream capping performance. When liquid levels overshoot into the bottle neck zone, cap placement can trap liquid in neck threads, resulting in sticky containers, mold growth risks, or compromised seal integrity. Keeping headspace consistent guarantees that capping chucks apply uniform magnetic torque without displacing fluid onto outer container threads.
Integrating a modern carbonated water machine unit within the monoblock framework also streamlines sanitation routines. Automated Clean-in-Place (CIP) dummy cups attach seamlessly to filling valves, allowing high-velocity hot water and chemical sanitisers to scrub internal fluid pathways without manual disassembly.
Reduced Concentrated Raw Material Waste: Exact dosing controls maintain syrup-to-water blending ratios without overfilling.
Enhanced Carbonation Retention: Controlled isobaric pressure prevents CO2 off-gassing during high-speed fluid transfer.
Rapid Package Format Changeovers: Motorized height adjustments and toolless quick-change neck starwheels minimize downtime between bottle size conversions.
Structured preventive maintenance routines protect internal valve mechanics, maintain instrument calibration, and ensure consistent volumetric output over long operational lifecycles.
Maintaining fill accuracy over millions of production cycles requires periodic inspection of sealing gaskets, pneumatic actuators, and electronic control sensors. Over time, aggressive CIP chemicals, thermal stress, and continuous mechanical cycles can degrade rubber seals within the filling valves, leading to minor pressure leaks during the counter-pressure phase. Micro-leaks disturb isobaric equilibrium, causing instant fluid foaming and inconsistent liquid levels.
Routine maintenance includes verifying calibration parameters on electromagnetic flow meters and line pressure transducers. Calibrating filling bowl level probes ensures that liquid supply pumps respond quickly to consumption surges, preventing air entrainment in the main supply manifold. Additionally, magnetic capping heads must be checked regularly with digital torque meters to prevent thread stripping or under-torqued closures.
Critical Maintenance Checklist:
Inspect filling valve seal rings and rubber vent-tube sleeves monthly for wear or deformation.
Verify filling bowl pressure sensor accuracy against calibrated master pressure gauges every six months.
Check central lubrication manifolds to ensure continuous oil delivery to main rotary support bearings.
Perform weekly torque testing on mechanical capping chucks to maintain seal security without damaging plastic threads.
Flush and sanitize CIP dummy cup mechanism seals to prevent cross-contamination during cleaning cycles.
Achieving output precision in CSD bottling requires an integrated engineering approach spanning fluid pressure control, precise mechanical alignment, and continuous electronic monitoring. By understanding fluid dynamics under counter-pressure conditions and maintaining rigid valve tolerance standards, beverage producers eliminate yield losses while maintaining high carbonation quality.
Investing in high-accuracy CSD filling technology bridges the gap between high-speed production demands and strict volumetric quality control. Facilities that prioritize precision filling systems benefit from reduced product waste, optimized utility consumption, and superior brand reliability across global distribution channels.
