Cleaning and Sterilization Protocols for Glass Bottle Filling Lines

The definitive cleaning and sterilization protocols for a modern high-capacity glass bottle filling machine require a strictly validated combination of automated Clean-in-Place (CIP) systems, specialized chemical detergent washes, targeted thermal sanitation via pressurized steam, and routine microbiological monitoring to ensure absolute biological decontamination and compliance with global food safety standards.

This comprehensive guide delves into the technical mechanisms of contamination control, specific washing procedures, agent selection criteria, and thermal sterilization methodologies necessary for executing elite hygiene standards on commercial production lines. Production managers, quality control engineers, and sanitation operators will gain actionable insights into creating a robust, compliant environment for glass bottling machinery.

Furthermore, standardizing these workflows allows industrial beverage plants to seamlessly integrate high-efficiency hardware with sustainable chemical and thermal practices. The following detailed analysis outlines the required operational framework to achieve pristine cleanliness and reliable regulatory alignment during modern high-volume packaging applications.

Table of Contents & Overview Summary

Understanding Contamination Risks and Hygiene Principles in Glass Bottle Filling Machines

Contamination risks in a glass bottle filling machine are managed by implementing rigid hygienic zoning, using sanitary design principles, and targeted prevention strategies against specific microbiological, chemical, and physical hazards that thrive within the moist, residue-heavy environment of liquid packaging lines.

Microbiological hazards represent the most critical risk factor inside an active liquid filling line. When processing products like fruit juices, dairy-based drinks, or craft beers, the residual sugars and organic matter left on internal valve surfaces provide an ideal nutrient source for wild yeasts, molds, lactic acid bacteria, and harmful foodborne pathogens. If a bottle filling machine is left uncleaned, these micro-organisms quickly form resilient biofilms. Biofilms are complex matrices of extracellular polymeric substances that shield bacteria from standard sanitizers, leading to persistent cross-contamination, altered flavor profiles, premature product spoilage, and catastrophic product recalls.

Chemical and physical hazards pose additional risks to operational safety and compliance. Chemical contamination often stems from inadequate rinsing procedures that leave trace residues of caustic detergents, acid descalers, or concentrated sanitizers inside the product delivery plumbing. Physical hazards in a glass bottling line typically involve airborne particulates, environmental dust, or micro-debris generated during glass handling and transport. These physical contaminants can settle inside the machine if the filling enclosure lacks positive pressure and HEPA filtration, threatening product safety and violating basic global regulatory standards.

Critical Contamination Vectors and Prevention Strategies

1. Microbiological Biofilms: Prevented by utilizing high-velocity turbulent flow during chemical CIP cycles to mechanically shear away cellular attachments before they can form a protective matrix.

2. Chemical Detergent Carryover: Prevented by installing calibrated inline conductivity meters that monitor rinse-water purity and verify the complete removal of cleaning chemicals before filling restarts.

3. Physical Glass Micro-Debris: Prevented by integrating enclosed overhead enclosures with laminar downflow air filtration alongside automated pre-fill bottle rinsing blocks.

4. Atmospheric Cross-Contamination: Prevented by dividing the bottling facility into physical hygiene zones that separate raw ingredient preparation from the high-care filling area.

To systematically eliminate these risks, industrial lines rely on sophisticated machinery built with sanitary design principles. Modern configurations, like the High-speed Water Bottling Machine on Sale, are engineered with electro-polished AISI 316L stainless steel for all product-contact parts. This material features an incredibly smooth surface finish with a low roughness average, preventing microscopic organisms from finding structural anchor points. Furthermore, these designs eliminate dead legs, crevice-free welds, and self-draining slopes to ensure cleaning chemicals contact every square millimeter of internal piping during automated sanitation runs.

Effective cleaning methods for glass bottle filling equipment combine automated Clean-in-Place (CIP) loops for internal mechanics, Clean-out-of-Place (COP) sub-assembly washing, and meticulous manual procedures to eliminate organic deposits and mineral scale across the filling line.

The foundational method for sanitizing the inner pathways of a modern liquid packaging system is the Clean-in-Place (CIP) cycle. This automated method circulates specialized chemical solutions through the product storage tanks, supply pumps, feed hoses, and individual filling valves without dismantling the machinery. By utilizing a closed loop, the CIP system regulates parameters like chemical concentration, contact time, flow velocity, and solution temperature to deliver a uniform, repeatable cleaning process. Achieving a minimum fluid velocity of 1.5 meters per second is critical, as it generates the turbulent flow needed to mechanically dislodge stubborn soils from internal pipe walls.

For external components and intricate mechanisms that cannot be cleaned via internal fluid circulation, operators use Clean-out-of-Place (COP) and manual detailing. COP involves removing parts like starwheels, bottle guides, rinsing nozzles, and filling valve caps to wash them in specialized, agitated wash tanks. Manual cleaning procedures are reserved for the machine structural framework, safety enclosures, and external drive mechanisms. Operators use low-pressure foam applicators and manual scrubbing tools to remove sticky product splatters and environmental dust, taking care to avoid delicate electronic sensors and pneumatic control valves.

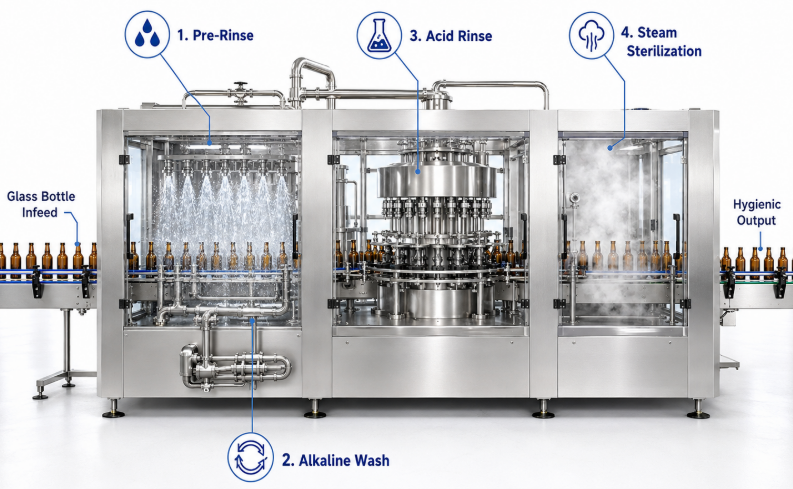

Step-by-Step Clean-in-Place (CIP) Operational Sequence

• Pre-Rinse Phase: Circulates clean, ambient water for 5 to 10 minutes to flush out remaining loose liquid product and organic material, draining it directly to waste.

• Alkaline Detergent Wash: Circulates a 1.5% to 3.0% caustic solution heated between 75°C and 85°C for 20 to 30 minutes to dissolve fats, proteins, and complex organic compounds.

• Intermediate Freshwater Rinse: Flushes the system with ambient water for 5 to 8 minutes to remove dissolved organic matter and alkaline chemical residues.

• Acid Detergent Descaling: Circulates a 0.5% to 1.5% nitric or phosphoric acid solution at 50°C to 60°C for 10 to 15 minutes to dissolve mineral scaling and beerstone deposits.

• Final Deionized Water Rinse: Executes a thorough final flush using clean water until inline conductivity sensors match the baseline purity value of incoming process water.

• Sanitization Cycle: Flushes the entire line with a chemical sanitizer or hot water flush to destroy remaining viable vegetative microorganisms before production begins.

Maintaining filling valves, centering bells, and capping heads requires careful execution of these multi-stage procedures. These parts handle the direct physical interface between the machine and the glass container, making them prime spots for product accumulation. Implementing an automated sequence ensures that filling valves actively open and close during the CIP cycle, allowing chemical solutions to sanitize the internal springs, vent tubes, and sealing gaskets. This rigorous approach is standard for specialized systems like the High-Accuracy CSD Bottled Production Line Carbonated Beverage Bottling Plant carbonated Water Machine, where gas-venting channels must stay clean to ensure precise fill levels and prevent foaming during pressurized carbonated beverage filling.

Cleaning agents for glass bottle filling machines are categorized into alkaline detergents for organic soil removal, acid descalers for mineral mineral removal, and chemical sanitizers that eliminate vegetative microbial cells from product-contact surfaces.

Alkaline cleaning agents form the backbone of industrial food and beverage sanitation programs. Sodium hydroxide, commonly known as caustic soda, is the primary active ingredient used to target heavy organic soils like proteins, complex carbohydrates, oils, and residual biological matter. At operational concentrations between 1.0% and 3.0% and temperatures above 70°C, caustic soda breaks down organic molecules through saponification and hydrolysis, transforming insoluble residues into water-soluble compounds that rinse away easily. Formulated alkaline cleaners also include chelating agents and surfactants to enhance surface wetting, suspend dissolved solids, and prevent dissolved organic matter from settling back onto cleaned stainless steel surfaces.

Acidic cleaning agents are used to remove inorganic mineral scale, hard-water deposits, oxalate accumulation, and beerstone scale. Phosphoric acid and nitric acid blends are preferred for stainless steel bottle filling machine setups. While alkaline washes dissolve organic matrices, they leave behind mineral films that can shelter bacteria. Running a regular acid cycle optimizes baseline hygiene metrics, neutralizes trace alkaline residues, and strips away inorganic scaling, restoring the smooth passive layer of stainless steel. Acid washes are usually run at lower temperatures and concentrations than caustics, keeping sanitation cycles efficient while protecting the line's internal metallurgy.

Comparative Analysis of Cleaning and Sanitizing Chemicals

Selecting the right sanitizing chemical requires matching the formula to the specific product line and elastomer materials. Peracetic acid is widely used because it destroys microbial cell walls through oxidation at low temperatures and breaks down into eco-friendly water and acetic acid without requiring a final rinse. However, operators must verify that all rubber gaskets, O-rings, and mechanical seals inside the bottle filling machine are made from compatible materials like EPDM or Viton. This step prevents premature component degradation, avoiding leaks and product contamination during high-pressure manufacturing runs.

Steam sterilization and thermal sanitation techniques use thermodynamic heat transfer to destroy persistent bacterial spores and vegetative micro-organisms inside glass bottle filling machine plumbing without relying on chemical sanitizers.

The thermodynamic principles of steam sterilization, often called Sterilization-in-Place (SIP), rely on the rapid release of latent heat when saturated steam condenses on cold metal surfaces. This thermal energy denatures structural proteins and inactivates essential enzymes within microbial cells, eliminating vegetative pathogens, persistent molds, and heat-resistant bacterial spores. Saturated steam is ideal for thermal sanitation because it penetrates tiny crevices and dead legs that might block liquid chemical sanitizers, delivering consistent biological decontamination across complex internal fluid networks.

Executing an effective SIP process requires precise control over pressure, temperature, and cycle duration. A standard sterilization profile requires the internal surfaces of the bottle filling machine to reach a minimum temperature of 121°C for at least 20 to 30 minutes. To hit this target without creating pockets of superheated, dry steam, the system must maintain a stable saturated steam pressure of approximately 1.1 bar above atmospheric pressure. Operators must install automated steam traps at the lowest points of the piping network to continuously drain condensed water, preventing cold spots that could compromise the sterilization cycle.

Critical Parameters for Thermal Sterilization (SIP) Workflows

1. Air Elimination Phase: Low-pressure steam is injected into the filling line with exhaust valves open to flush out atmospheric air, preventing cold insulation pockets.

2. Temperature Ramp-Up: Steam pressure is steadily increased until all monitoring thermocouples throughout the bottling line read a minimum of 121°C.

3. Sterilization Plateau: The system holds the internal temperature between 121°C and 125°C for 30 consecutive minutes to achieve full biological decontamination.

4. Controlled Condensation Drainage: Thermostatic steam traps actively drain condensate to keep saturated steam in direct contact with internal plumbing walls.

5. Sterile Air Over-Pressure Cooling: Filtered, medical-grade sterile air is pumped into the line during cooling to prevent a vacuum that could draw in ambient contaminants.

Managing thermal expansion is a critical mechanical priority during high-temperature steam sterilization cycles. When a multi-valve bottle filling machine transitions from ambient operating temperatures up to 121°C, the stainless steel pipes, filling manifolds, and heavy valve blocks expand at different rates. If the machine lacks flexible expansion joints or sliding structural mounts, this thermal stress can warp components, misalign filling valves, and damage internal seals. Operators must follow a controlled heat-up and cool-down schedule to protect the mechanical alignment of high-speed filling lines, ensuring long-term reliability and precise filling accuracy across thousands of continuous operational hours.

Developing and verifying a cleaning schedule requires combining structured operational timelines with rapid testing methods like ATP bioluminescence, conductivity tracking, and microbial plating to guarantee full compliance with global food safety standards.

A compliant sanitation program relies on a structured, frequency-based cleaning schedule customized for the facility's production environment. Standard sanitation protocols divide workflows into daily operational cleanings, weekly deep cleans, and immediate changeover cleanings between different product batches. Daily protocols focus on high-care areas directly involved in product handling, including automated chemical CIP flushes of the internal filling valves and external foam washes of the machine framework. Weekly schedules include deep-cleaning tasks like opening enclosed housings to inspect seals and running acid descaling loops to eliminate mineral scale build-up.

Verification methods are essential to prove that cleaning protocols are effective and to meet global safety standards like HACCP, FDA, and IFS. Adenosine Triphosphate (ATP) bioluminescence swabbing is widely used for rapid verification because it delivers results in under a minute. Operators swab critical touchpoints on the bottle filling machine, such as filling nozzles and centering bells, and place the sample in a luminometer. The tool measures light output in Relative Light Units (RLU) to gauge residual biological matter, allowing quality control teams to approve the machine for production or order an immediate re-clean before manufacturing begins.

Sanitation Verification Matrix and Compliance Thresholds

Documenting these verification steps creates a clear audit trail that proves regulatory compliance and safeguards product quality. Every sanitation cycle should be automatically logged, recording chemical concentrations, temperature charts, contact times, and final rinse conductivity values. Combining these records with ATP results and microbiological data protects the brand against product safety disputes and simplifies compliance audits. Maintaining pristine filling conditions across all production setups allows facilities to reliably deliver high-quality beverages that meet top-tier commercial food safety requirements.

Summary and Key Takeaways for Industrial Packaging Lines

Maintaining high hygiene standards on a glass bottle filling line requires balancing automated engineering, targeted chemical selection, and strict thermal sterilization workflows. By implementing detailed CIP loops, choosing appropriate alkaline and acid agents, and validating cycles with modern ATP and conductivity testing, beverage producers can eliminate contamination risks and prevent biofilm formation. This systematic approach preserves product freshness, protects expensive machinery, and ensures full compliance with international safety standards. Investing in robust sanitation protocols helps modern bottling facilities maintain reliable, high-efficiency operations while delivering consistent product quality across every manufacturing run.
