Automatic Combiblock Machine: Features, Applications, and Maintenance

The beverage packaging industry has undergone a massive transformation with the advent of integrated technologies. Among these, the Automatic Combiblock Machine stands out as a pinnacle of engineering, combining blow molding, filling, and capping into a single, seamless synchronized system. By eliminating the need for extensive conveyor belts and air-rinse systems between standalone machines, the Combiblock system optimizes factory footprints and significantly reduces energy consumption. Manufacturers today are increasingly moving away from traditional linear lines toward these integrated solutions to meet the high demands of modern production.

An Automatic Combiblock Machine is a highly efficient, integrated packaging solution that merges the blowing, filling, and capping processes into one compact unit, primarily used for bottling water, carbonated soft drinks, and juices. It streamlines production by removing intermediary conveyors, ensuring higher hygiene standards, and reducing operational costs through synchronized automation and precise control systems.

As global competition intensifies, understanding the technical nuances of Combiblock technology is essential for any bottling facility aiming for maximum ROI. This article provides a comprehensive deep dive into the operational mechanics, key features, and maintenance protocols of these machines. We will explore how this technology integrates a carbonated filling machine core with advanced blow molding to redefine efficiency in the liquid packaging sector.

Executive Summary of Content

What is an Automatic Combiblock Machine?

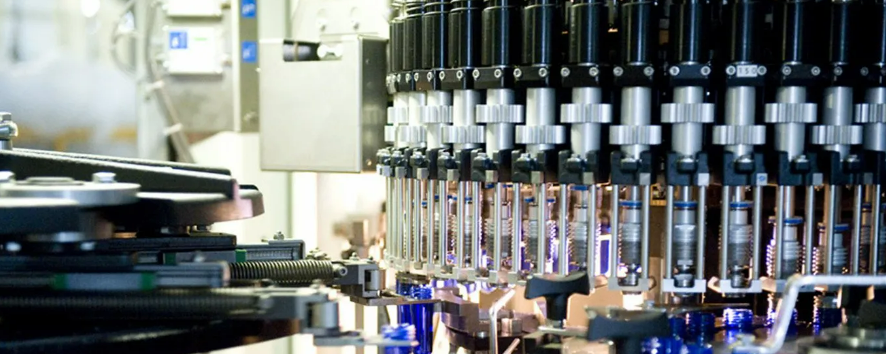

The Automatic Combiblock Machine is an advanced liquid packaging system that integrates the blow molding of PET bottles, the precise filling of liquids, and the final capping process into a single, unified block driven by a common motor or synchronized servo system.

In a traditional bottling line, empty bottles are blown in one machine, moved via air conveyors to a rinser, then to a filling machine, and finally to a capper. The Combiblock eliminates these intermediate steps. By connecting the blower directly to the filler via a transfer star-wheel, the risk of bottle contamination is virtually eliminated. This integration is particularly vital when the system functions as a carbonated filling machine, where maintaining internal pressure and sterile conditions is paramount for product quality.

The evolution of the Combiblock has allowed manufacturers to reclaim up to 30% of their floor space. Because there are no long conveyor paths, there is no chance for bottles to tip over or become jammed between stations. This results in a much higher Line Efficiency (OEE) and a more stable production environment. The synergy between the components allows for "neck-handling" throughout the entire process, which protects the bottle body from scratches and mechanical stress.

From a commercial perspective, the Combiblock represents a significant shift toward "Lean Manufacturing." By reducing the number of operators required and centralizing the control interface, a single technician can oversee the entire primary packaging process. Whether producing still water or functioning as a complex carbonated filling machine, the Combiblock offers a level of precision and speed that separate units simply cannot match.

Key Features and Technical Advantages

The primary features of an Automatic Combiblock Machine include its compact footprint, significant energy savings through heat recovery, and superior hygiene levels achieved by eliminating bottle exposure to the open environment between blowing and filling.

1. Optimized Space and Logistics: Because the Combiblock integrates three major functions into one frame, it removes the need for meters of air conveyors and bottle accumulation tables. This allows factories to install high-capacity lines in smaller buildings, reducing real estate costs.

2. Superior Hygiene and Product Safety: Traditional lines expose empty bottles to factory air as they travel from the blower to the filler. In a Combiblock, the bottle is transferred directly into the filling zone within a controlled, often HEPA-filtered environment. This is critical for sensitive products and high-speed carbonated filling machine operations where purity is non-negotiable.

3. Reduced Energy Consumption: Modern Combiblocks utilize infrared heating for preforms and often feature air recovery systems that reuse high-pressure air from the blowing process for pre-blowing or other pneumatic functions. This significantly lowers the overall electricity demand of the plant.

The technical superiority of this system is also evident in its lower "Bottle Loss" rate. In conventional lines, bottles are often damaged during high-speed conveying. The synchronized transfer of the Combiblock ensures each bottle is handled gently. Furthermore, the centralized control system allows for instantaneous adjustments across all three modules simultaneously, ensuring that if the filler slows down, the blower adjusts its output immediately to prevent bottlenecks.

Furthermore, the integration leads to a reduction in water usage. Since the bottles come straight from the blow molder at high temperatures, they are inherently sterile, often reducing or eliminating the need for a separate bottle rinser. When used as a carbonated filling machine, this thermal efficiency also helps in maintaining the CO2 stability of the liquid during the filling phase.

Core Components and Working Principle

The working principle of a Combiblock involves a sequential process where PET preforms are heated and blown into bottles, immediately transferred to a filling valve to be loaded with liquid, and then hermetically sealed by a capping station, all synchronized by a precision timing system.

The journey begins at the Blow Molding Module. Preforms are loaded into a hopper and fed into a heating oven. Here, infrared lamps heat the preforms to a precise temperature. Once malleable, they are transferred to the blowing station where high-pressure air expands them into the shape of the mold. The transition to the next phase is the most critical part of the Combiblock: a high-speed transfer star-wheel grips the bottle by the neck and moves it directly into the filling station.

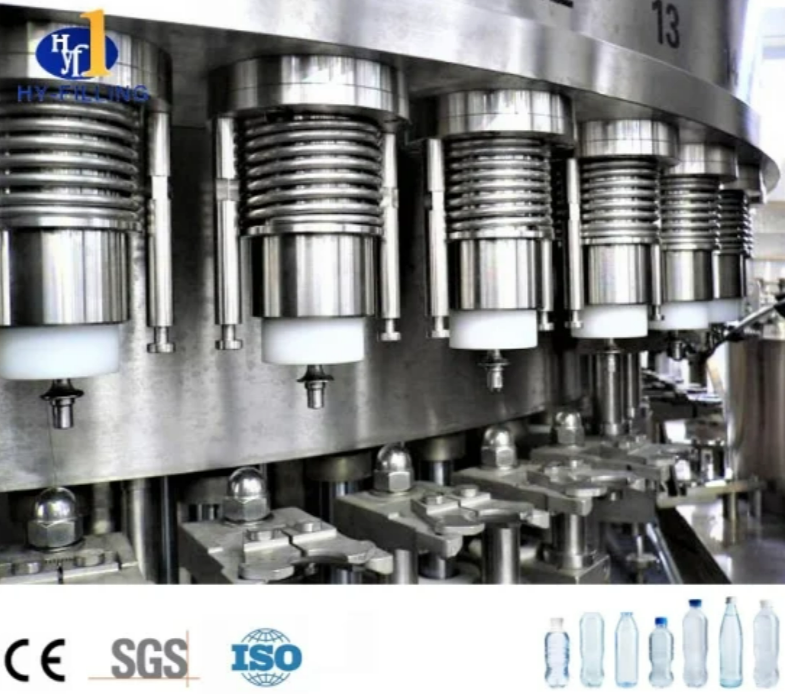

In the Filling Module, the machine acts as a specialized liquid dispenser. If configured as a carbonated filling machine, the filling valves utilize isobaric (equal pressure) technology. The bottle is pressurized with CO2 to match the pressure in the product tank before the liquid is released. This prevents foaming and ensures the carbonation remains within the beverage. Flow meters or electronic level sensors ensure that every bottle receives the exact same volume of liquid, minimizing product giveaway.

Finally, the bottles enter the Capping Module. Caps are sorted and fed via a chute to the capping heads. These heads apply a specific torque to ensure the bottles are leak-proof while remaining easy for the consumer to open. Throughout this entire sequence, the "Neck Handling" technology ensures that the bottle is never gripped by its body, which is essential for lightweight PET bottles that might otherwise collapse under pressure.

Applications in the Beverage Industry

The Automatic Combiblock Machine is primarily applied in high-volume beverage production facilities for mineral water, juices, and particularly for carbonated soft drinks where it functions as a high-speed carbonated filling machine.

1. Carbonated Soft Drinks (CSD): This is perhaps the most demanding application. The carbonated filling machine integrated within the Combiblock must handle high internal pressures and maintain low temperatures to keep CO2 dissolved. The Combiblock’s ability to move bottles quickly from the blower to the filler helps maintain a consistent bottle temperature, which is advantageous for carbonation stability.

2. Still and Mineral Water: For water bottling, the Combiblock offers the highest possible speeds (often exceeding 40,000 bottles per hour). The hygiene benefits are a major draw here, as water has no preservatives and requires a clean environment to prevent bacterial growth.

3. Juices and Tea (Ultra-Clean): While hot-filling usually requires specific heat-resistant PET, "Ultra-Clean" or "Ambient" filling of juices often utilizes Combiblock technology. The enclosed environment allows for the filling of sensitive beverages with minimal risk of contamination.

The versatility of the Combiblock also extends to different bottle sizes. With "Quick Changeover" parts, manufacturers can switch from a 500ml mold to a 1.5L mold in a relatively short timeframe. This flexibility is crucial for B2B beverage suppliers who produce for multiple brands or various market segments. The integrated carbonated filling machine components are designed to handle varying viscosities and carbonation levels, making it the workhorse of the modern bottling plant.

Beyond beverages, some specialized Combiblocks are being adapted for the liquid dairy and household chemical markets. However, the beverage sector remains the primary user due to the sheer volume of PET bottles processed globally. The efficiency of a carbonated filling machine in a Combiblock setup ensures that even at extreme speeds, the "Fill-to-Level" accuracy remains within 1-2mm, ensuring brand consistency across millions of units.

Essential Maintenance and Troubleshooting

Maintenance of an Automatic Combiblock Machine requires a rigorous schedule of lubrication, seal inspections, and sensor calibration to ensure the complex synchronization between the blower and the carbonated filling machine components remains intact.

Because the Combiblock is a single integrated unit, a failure in one section (like the capper) stops the entire production line. Therefore, preventative maintenance is the golden rule. Daily checks should include inspecting the blowing molds for wear and ensuring the infrared lamps in the oven are all functioning correctly. Any deviation in preform heating will result in deformed bottles, which can jam the transfer star-wheels and lead to significant downtime.

For the carbonated filling machine section, the integrity of the filling valve seals is paramount. These seals are subject to constant pressure cycles and must be replaced according to a strict schedule to prevent leaks and ensure accurate fill levels. Cleaning-in-Place (CIP) is also a critical maintenance task. The machine must be automatically flushed with cleaning agents to remove any organic residue, especially when switching between different flavored beverages or sugary sodas.

Common troubleshooting often involves the synchronization (timing) of the machine. If the bottles are not entering the filler at the exact millisecond the valve opens, it can cause "crashing." Modern machines use "Electronic Cam" technology to manage this, but sensors must be kept clean of dust and moisture. Regular software backups and PLC (Programmable Logic Controller) checks are also recommended to ensure the automation logic remains robust against power surges or hardware aging.

Pro Tip: Always maintain a "Critical Spare Parts" kit on-site. This should include filling valve springs, capping head gaskets, blowing nozzles, and specialized sensors. Having these on hand can reduce a potential 24-hour breakdown to a 30-minute repair.
