Working steps of carbonated drink filling machine

Principles of Isobaric Filling

Isobaric filling is the core mechanism of any carbonated drink filling machine, ensuring that the liquid enters the bottle under a constant pressure environment to prevent the liberation of dissolved carbon dioxide.

In a standard atmospheric filler, liquid falls by gravity. However, if you attempt this with a carbonated beverage, the sudden drop in pressure causes the CO2 to expand rapidly, resulting in excessive foam and an empty bottle. The isobaric principle solves this by first pumping CO2 into the bottle until the internal pressure matches the pressure in the filling tank. Only when these pressures are equal does the liquid valve open.

Modern filling capping Combiblock systems utilize advanced pneumatic valves to control this process. By maintaining a steady $P1 = P2$ environment, the beverage flows smoothly down the walls of the container. This "quiet" filling method is essential for high-speed lines where any turbulence would lead to product waste and inconsistent fill levels.

Furthermore, the temperature is usually kept very low (typically between 0 and 4 degrees Celsius). Cold liquids hold CO2 much more effectively than warm ones. The combination of high pressure and low temperature allows for maximum carbonation stability, which is the hallmark of a premium soft drink or sparkling water product.

Bottle Rinsing and Preparation

Before any liquid enters the container, the bottles undergo a multi-stage rinsing process to remove dust, debris, and microorganisms that could compromise the quality of the drink.

The preparation phase typically starts with an automated gripper system that flips the bottles 180 degrees. While inverted, high-pressure nozzles spray deionized water or a sanitizing solution into the bottle. This ensures that the interior is completely sterile. In a filling capping Combiblock setup, this rinsing station is the first module, synchronized perfectly with the subsequent filling carousel to ensure no idle time where contamination could re-enter the bottle.

Following the internal rinse, a brief drainage period allows excess water to exit. Some high-end systems also include an air-rinse or a secondary ionized air blast to ensure no liquid droplets interfere with the concentration of the beverage. This level of preparation is vital because even a tiny speck of dust can act as a "nucleation point," causing the carbonated liquid to erupt into foam during the filling stage.

The mechanical integrity of the bottle is also checked during this phase. Sensors detect if a bottle is deformed or missing. If the machine detects a missing bottle, the corresponding filling valve will not open, preventing the loss of CO2 and beverage. This "No Bottle, No Fill" logic is a standard safety and efficiency feature in industrial bottling plants.

The CO2 Purging and Pressurization Process

The pressurization step involves injecting CO2 into the sealed bottle to displace oxygen and equalize the pressure with the main beverage reservoir.

Once the bottle is sealed against the filling valve by a rubber gasket, the "gas-back" valve opens. Pure CO2 is injected into the container. This serves two purposes: it creates the necessary pressure for the isobaric process and it flushes out the ambient air. Oxygen is the enemy of shelf life; by reducing the oxygen content inside the bottle before filling, manufacturers can ensure the drink tastes fresh for months.

As the CO2 enters, the pressure climbs until it reaches the setpoint of the filling tank, usually between 2 and 4 bars depending on the beverage type. In a filling capping Combiblock, this process is monitored by high-precision pressure transducers. If the bottle fails to reach the required pressure—perhaps due to a hairline crack in the plastic—the filling cycle is aborted for that specific station.

This stage is also where the "long tube" or "short tube" filling technology comes into play. Most modern carbonated drink machines use a short tube design where the gas is returned through a separate channel. This allows for faster filling speeds and less mechanical complexity. The efficiency of this pressurization directly dictates the overall output of the production line.

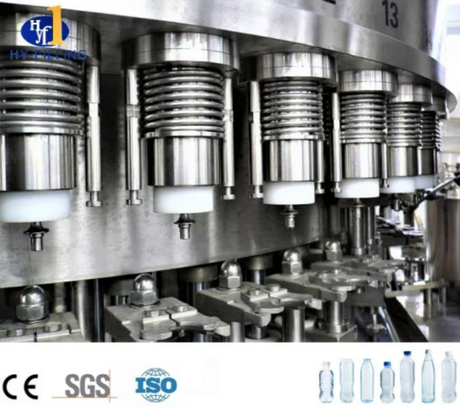

Precision Filling and Level Control

The filling stage occurs when the liquid valve opens, allowing the beverage to flow into the bottle under gravity or low-pressure differential while the displaced gas returns to the tank.

With the pressures equalized, the liquid valve is actuated. Because there is no pressure difference to fight against, the liquid flows naturally. To further reduce foaming, the filling valves are designed to direct the liquid against the inner walls of the bottle rather than straight down the center. This laminar flow is critical for maintaining the integrity of the carbonation bubbles.

The filling level is controlled through a return air pipe. As the liquid rises, it eventually covers the opening of the return air pipe. Once the gas can no longer escape through that pipe, the flow of liquid stops automatically. This is a remarkably accurate mechanical method of ensuring every bottle on the line has the exact same volume, which is a key requirement for consumer trust and regulatory compliance.

In a filling capping Combiblock, the transition from filling to the next stage is instantaneous. The precision of the cam-driven or servo-driven valves ensures that the "fill-to-level" accuracy is within a tolerance of $\pm$ 2mm. This consistency is vital for high-volume B2B manufacturing where thousands of liters are processed every hour.

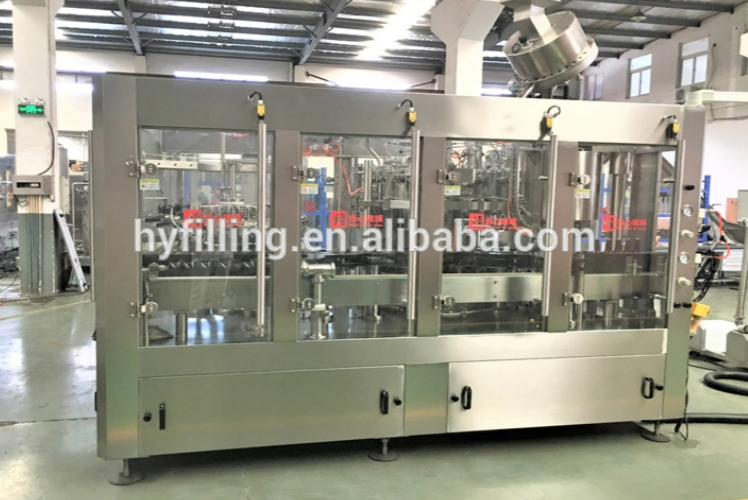

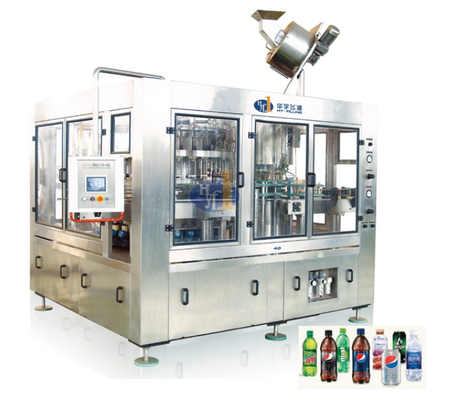

The Role of the Filling Capping Combiblock

The filling capping Combiblock is an integrated machine architecture that combines the rinsing, filling, and capping functions into a single synchronized framework to maximize efficiency.

Traditional bottling lines used separate machines connected by long conveyor belts. This created "dead zones" where bottles could fall over, become contaminated, or lose temperature. The Combiblock eliminates these conveyors, moving the bottles directly from one star-wheel to the next. This significantly reduces the physical footprint of the factory and minimizes the risk of the "wet" parts of the machine being exposed to the environment.

The integration provided by a filling capping Combiblock also allows for a unified control system. A single HMI (Human Machine Interface) can monitor the torque of the capper, the pressure of the filler, and the flow rate of the rinser simultaneously. This data centralization is essential for modern "Smart Factory" initiatives and SEO-driven industrial optimization where data-backed performance is a selling point.

Advantages of Combiblock Systems:

1. Reduced Footprint: Occupies up to 30% less space than traditional linear lines.

2. Improved Hygiene: Fewer conveyors mean fewer surfaces for bacteria to grow.

3. Energy Efficiency: Single-motor drives can often power multiple stages of the block.

4. Lower Maintenance: Fewer moving parts between machines leads to higher uptime.

Pressure Release and Stabilization

Pressure release, often called "snifting," is the controlled venting of the high-pressure gas remaining in the neck of the bottle after the liquid has been filled.

If you were to pull the bottle away from the filling valve immediately after the liquid reached the desired level, the sudden drop from 3 bars to atmospheric pressure would cause the drink to explode out of the bottle. The snifting process involves opening a small vent valve in multiple stages to slowly release the gas. This allows the liquid surface to stabilize and any small bubbles to settle.

This step is arguably the most delicate in the entire carbonated drink filling process. If the pressure is released too quickly, "fobbing" occurs (the creation of foam). If it is released too slowly, the machine's overall speed is throttled. Advanced filling capping Combiblock units use multi-stage snifting valves that can be adjusted via the software to account for different carbonation levels in various products.

Once the pressure inside the bottle matches the outside air, the seal is broken, and the bottle is lowered from the filling head. It is then immediately transferred to the capping station. The time between the end of filling and the application of the cap is kept to a fraction of a second to prevent any CO2 from escaping.

Capping and Final Sealing Mechanics

The capping station applies the closure—typically a plastic screw cap or a metal crown—with precise torque to ensure a permanent, airtight seal for the pressurized contents.

Capping a carbonated beverage is more complex than capping still water. The seal must be strong enough to withstand the internal pressure of the gas, even if the bottle is shaken or exposed to heat during transport. In a filling capping Combiblock, the capping heads use magnetic clutches to apply a very specific amount of torque. If the torque is too low, the bottle will leak; if it is too high, the cap or the bottle neck could be damaged.

The caps themselves are fed from a high-speed sorter and "picked up" by the bottle as it passes under the capping head. For plastic bottles, the screw-on motion is synchronized with the forward movement of the star-wheel. For glass bottles using crown corks, a vertical press motion creates the crimped seal.

High-speed cameras and sensors are often integrated into this stage to verify that every cap is present and level. Any bottle that fails the capping check is automatically diverted from the main line. This ensures that only 100% perfect products reach the packaging and palletizing stages.

Maintenance and Hygiene Standards

Regular maintenance and strict CIP (Clean-in-Place) protocols are required to keep a carbonated drink filling machine running at peak performance while meeting food safety regulations.

Hygiene is the most critical aspect of beverage production. Most modern filling capping Combiblock systems are designed with "slope" surfaces that allow liquids to drain away, preventing stagnant water. The CIP system involves circulating hot water and chemical cleaning agents through the filling valves and tanks at high velocities. This process is fully automated and usually scheduled between flavor changes or at the end of a production shift.

From a mechanical perspective, maintenance focuses on the wearable parts: the rubber gaskets on the filling valves, the grippers on the rinser, and the magnetic clutches on the capper. Because these machines operate at such high speeds, even a small amount of wear can lead to a significant drop in efficiency.

Maintenance Checklist:

1. Gasket Inspection: Check for cracks in the isobaric seals to prevent pressure loss.

2. Lubrication: Ensure all star-wheels and gears are lubricated with food-grade grease.

3. Sensor Calibration: Regularly test the pressure transducers and level sensors for accuracy.

4. Torque Testing: Manually verify the capping torque at least once per shift.
