What is Blowing Filling Capping Combi For Water

The global beverage industry is witnessing a transformative shift toward integrated manufacturing solutions that prioritize speed, hygiene, and resource management. In the bottled water sector, traditional production lines often required separate machines for bottle blowing, filling, and capping, connected by extensive conveyor systems. However, the emergence of the Blowing Filling Capping Combi (BFC Combi) has revolutionized this workflow by merging these critical phases into a single, synchronized unit. This integration eliminates the need for air conveyors and reduces the risk of contamination, catering specifically to the high-efficiency demands of modern water bottling plants.

A Blowing Filling Capping Combi for water is an integrated production solution that combines the stretch blow molding, volumetric or gravity filling, and capping processes into one compact machine frame. This system is designed to transform PET preforms into finished, sealed water bottles in a continuous, high-speed flow, significantly reducing footprint, energy consumption, and the risk of external pollutants.

As water producers seek to optimize their "Carbonated filling machine" workflows—even for non-carbonated pure water lines—understanding the technical mechanics of Combi technology is essential. This article provides an in-depth analysis of how these systems operate, the specific advantages they offer over traditional linear lines, and how they contribute to a more sustainable manufacturing future.

Section and Summary

1. What is a Blowing Filling Capping Combi for Water?

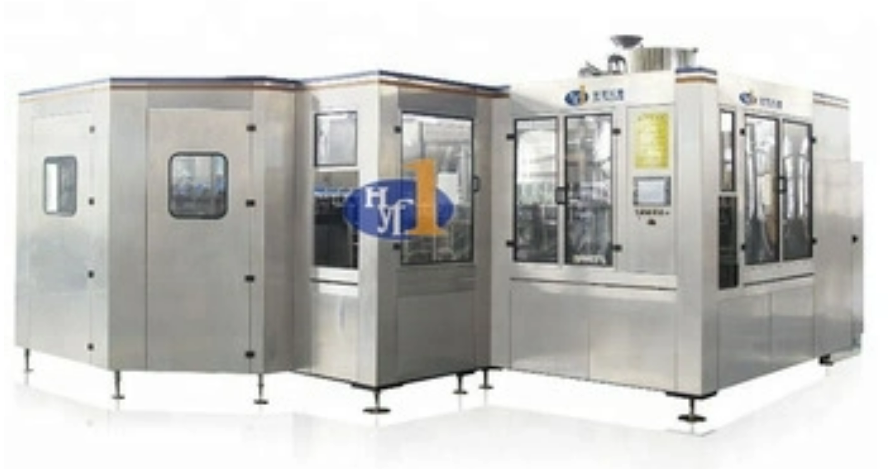

A Blowing Filling Capping Combi for water is a high-performance monobloc system that executes the entire bottle creation and packaging cycle—from PET preform heating to the final capped bottle—within a single, enclosed environment.

In traditional water bottling setups, the process is fragmented. A blow molder produces the bottles, which are then transported via long air conveyors to a separate filler and capper. This conventional method occupies vast amounts of factory floor space and exposes the empty bottles to potential airborne contaminants during transit. The Combi system replaces this disjointed approach by linking the blow molder directly to the filling and capping modules. This seamless transition ensures that once a bottle is blown, it is immediately filled and sealed, minimizing the interval where the interior of the container is exposed to the environment.

From a technical perspective, the Combi system utilizes a centralized control architecture to synchronize the rotational speeds of each module. Whether the line is handling still water or utilizing a "Carbonated filling machine" configuration for sparkling varieties, the integration ensures a smooth "neck-handling" transfer. This means the bottles are supported by their necks throughout the entire process, which is crucial for maintaining the integrity of lightweight PET containers. By removing the need for air conveyors, the system also significantly reduces electricity consumption, as there are no high-powered fans required to move empty bottles across the plant.

Furthermore, the integration within a BFC Combi allows for a much smaller footprint. Industrial facilities often face space constraints, and by condensing three large machines into one, manufacturers can allocate saved space to raw material storage or secondary packaging equipment like palletizers. The closed-loop nature of the Combi also facilitates easier implementation of Clean-in-Place (CIP) systems, ensuring that the water remains pure and meets international safety standards for human consumption.

2. Key Processes in a Blowing Filling Capping Combi System

The operational cycle of a Combi system follows a precise sequence of preform heating, stretch-blow molding, precision liquid dispensing, and torque-controlled capping, all managed by a unified automation interface.

2.1. Blowing Process

The journey begins with the PET preform. These preforms are fed into a heating oven, typically using infrared lamps, where they are brought to a precise temperature to make the plastic malleable. Once heated, the preforms are transferred to the blow molding station. Here, high-pressure compressed air and a stretch rod expand the preform into the shape of the mold. In a Combi system, this process is synchronized perfectly with the filling rate, ensuring that a "fresh" bottle is always ready for the next stage.

Modern blowing modules within Combi units focus on energy recovery. The high-pressure air used for blowing is often recycled to be used in low-pressure pneumatic components, reducing the overall carbon footprint of the "Carbonated filling machine" or water line. Because the bottles are transferred immediately to the filler, they maintain a degree of residual heat, which can actually assist in certain types of microbial control, though for pure water, the primary benefit remains the sterile environment.

2.2. Filling Process

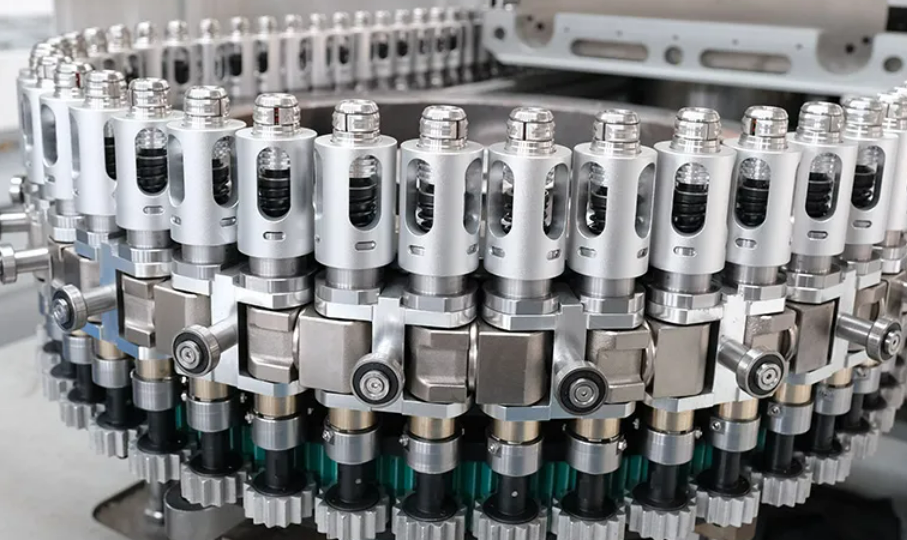

Once the bottle is formed, it is transferred via a starwheel to the filling module. For water, this is typically done using gravity or low-pressure electronic volumetric filling. Electronic filling valves are highly precise, ensuring that every bottle is filled to the exact milliliter, which reduces product waste. The filling environment is strictly controlled, often featuring a HEPA-filtered air supply to maintain an overpressure zone that keeps dust and microbes away from the open bottles.

The filling technology must be versatile. While this specific Combi is for water, many manufacturers utilize the same structural framework for a "Carbonated filling machine" by adding a counter-pressure system and a carbonator. In a standard water Combi, the focus is on laminar flow to prevent splashing and foaming, allowing for higher speeds. The neck-handling technology allows the machine to process various bottle sizes with minimal changeover time, as the height of the filling valves relative to the bottle neck remains constant.

2.3. Capping Process

The final stage is capping, where the filled bottles receive their closures. Caps are sorted and fed from a hopper into a capping head, which applies them to the bottle with precise torque. This ensures the seal is tight enough to prevent leakage and contamination but remains easy for the end-consumer to open. In a Combi system, the distance between the filling valve and the capping head is minimized to the absolute limit, which drastically reduces the "open time" of the product.

This rapid transition to the capping stage is a critical quality control feature. By sealing the bottle almost instantly after filling, the risk of oxygen pick-up or microbial ingress is virtually eliminated. Advanced Combi units also include cap sterilization systems (using UV light or chemical rinses) before the cap reaches the bottle. Once capped, the finished product is discharged from the Combi, ready for labeling and secondary packaging.

3. Advantages of Using a Combi System

The primary advantages of a Blowing Filling Capping Combi include a 25% to 30% reduction in total cost of ownership, a significantly smaller equipment footprint, and superior product hygiene due to the elimination of air conveyors.

The adoption of Combi technology represents a strategic move toward "Lean Manufacturing" in the beverage sector. By integrating these three functions, companies can achieve higher efficiency with fewer operators. Below are the specific benefits categorized by operational impact:

3.1. Space and Cost Efficiency

1. Reduced Footprint: By eliminating the meters of air conveyors required to link separate machines, a Combi system can save up to 70% of the floor space compared to a traditional linear line. This allows for smaller factory builds or more equipment in existing spaces.

2. Lower Energy Consumption: Air conveyors require continuous fan power to move bottles. A Combi system uses mechanical transfer starwheels, which consume significantly less electricity. Furthermore, the unified drive system is more efficient than three separate motors.

3. Reduced Maintenance Costs: With fewer moving parts (no conveyor belts, fewer motors, and a centralized lubrication system), the long-term maintenance requirements are lower. Training is also simplified, as operators only need to learn one interface rather than three.

3.2. Faster Production and Flexibility

1. High-Speed Throughput: Because the blowing, filling, and capping modules are electronically synchronized (often via a single servo-drive system), the line can operate at much higher speeds without the risk of bottle jams or collisions on a conveyor.

2. Rapid Changeovers: Using neck-handling technology means that when switching between different bottle volumes (e.g., 500ml to 1.5L), the height of the machines often does not need adjustment. Only the molds and some starwheel inserts need changing, drastically reducing downtime.

3. Versatility for Different Products: The Combi block can be adapted for various liquid types. While primarily used for water, the base technology is the same as that used in a "Carbonated filling machine," allowing manufacturers to pivot their production strategy based on market demand.

3.3. Enhanced Hygiene and Quality Control

1. Elimination of Contamination Risks: In a traditional line, empty bottles sit on open air conveyors where they can collect dust or bacteria. In a Combi, the bottle is blown and filled in seconds within a protected enclosure.

2. Integrated Cleaning: The monobloc design allows for a more effective Clean-in-Place (CIP) and Sterilize-in-Place (SIP) process. The stainless steel construction and sloped surfaces ensure that no liquid or residue can pool inside the machine, preventing mold growth.

3. Consistent Quality: Unified control systems monitor every bottle in real-time. If a blowing error occurs, the filler knows not to dispense liquid into that specific station, and the capper will not waste a cap, reducing overall material waste.

4. Applications of Blowing Filling Capping Combi in Water Production

BFC Combi systems are ideally suited for high-volume production of mineral water, purified water, and flavored non-carbonated drinks, supporting a wide range of PET bottle shapes and sizes.

Water production is a high-volume, low-margin business, which makes the efficiency of the Combi system particularly attractive. Whether a factory is producing standard 500ml "on-the-go" bottles or larger 2-liter family sizes, the Combi provides a consistent output that manual or semi-integrated lines cannot match.

For companies looking to diversify, the Combi framework can also support the integration of a "Carbonated filling machine" module. This is particularly useful for brands that produce both "Still" and "Sparkling" water on the same line. The ability to handle various carbonation levels within a single synchronized block allows for a flexible product portfolio. Furthermore, the BFC Combi is frequently used for "Ultra-Clean" applications, where the water must be filled in a near-sterile environment to ensure a long shelf life without preservatives.

The application also extends to specialized bottle designs. Many water brands now use unique, ergonomic bottle shapes to stand out on the shelf. The stretch-blow molding module within the Combi is capable of handling complex mold designs, ensuring that the aesthetic appeal of the bottle is maintained without sacrificing production speed.

5. Future Trends in Blowing Filling Capping Technology

The future of BFC Combi technology lies in the integration of Industry 4.0 "Smart Factory" features, increased energy recovery systems, and the ability to process 100% recycled PET (rPET).

As sustainability becomes a global priority, the "Carbonated filling machine" and water bottling sectors are under pressure to reduce their environmental impact. Future Combi systems are being designed to handle thinner bottle walls (lightweighting), which reduces plastic consumption. However, thinner bottles are harder to handle, requiring the precise, vibration-free movement that only a synchronized Combi can provide.

Digitalization is another major trend. Future machines will be equipped with hundreds of sensors that feed data into AI-driven analytics platforms. These systems can predict when a component is likely to fail before it actually does (predictive maintenance) and automatically adjust blowing pressures or filling speeds to optimize performance. This level of automation ensures that the water production line operates at peak efficiency 24/7.

Finally, the transition to rPET (recycled PET) is a significant focus. Recycled plastic behaves differently during the heating and blowing process compared to virgin plastic. Advanced Combi units are now incorporating sophisticated infrared heating controls that can adjust in real-time to the variations in rPET preforms, ensuring consistent bottle quality regardless of the material source. This evolution ensures that the Combi remains the centerpiece of a sustainable, efficient, and profitable water bottling operation.
