The liquid packaging industry has undergone a massive transformation with the advent of Combi-block technology. Traditionally, the process of producing a bottled beverage required separate machines for bottle blowing, transporting, filling, and sealing. This fragmented approach often led to higher energy consumption, increased floor space requirements, and a higher risk of secondary contamination. However, the integration of these processes into a single, cohesive unit—the Blowing Filling Capping (BFC) machine—has redefined efficiency for modern production lines.

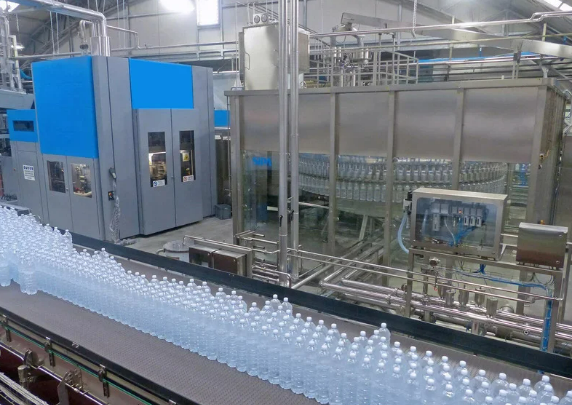

A Blowing Filling Capping machine is an integrated high-speed production system that combines the plastic bottle blowing unit, the liquid filling unit, and the capping unit into one automated framework, significantly reducing footprint and increasing hygienic safety. This technology is particularly vital for high-volume industries like water, juice, and carbonated soft drinks, where maintaining a sterile environment and high throughput is the key to profitability.
As global demand for packaged beverages rises, manufacturers are looking for ways to optimize their Carbonated filling machine operations. This article provides an in-depth analysis of how these integrated systems work, their technical advantages over traditional linear lines, and why they represent the future of sustainable bottling. By understanding the mechanical intricacies and the economic benefits, businesses can make informed decisions about upgrading their factory capabilities.
Section | Summary |
Working Principle | An overview of the integrated synchronous motion and the mechanical logic of combining three distinct bottling phases. |
BFC Process Logic | A step-by-step breakdown of preform heating, stretch-blowing, precision filling, and airtight sealing. |
System Advantages | Evaluation of space savings, reduced energy consumption, and the elimination of air conveyors for better hygiene. |
Technical Specs | Detailed parameters including production speed, pressure requirements, and automation levels. |
Product Applications | Analysis of compatible liquids such as mineral water, juice, and carbonated soft drinks. |
Bottle Versatility | Discussion on mold flexibility and the ability to handle various PET bottle shapes and volumes. |
Maintenance & Cleaning | Best practices for CIP/SIP systems and regular mechanical upkeep to ensure long-term reliability. |
Sustainability | How the BFC system reduces carbon footprint through heat recovery and reduced power consumption. |
The working principle of a Blowing Filling Capping machine relies on a synchronized rotary system where PET preforms are transformed into finished, filled, and sealed bottles within a single controlled environment, eliminating the need for intermediate transport. This integration ensures that the bottle is filled almost immediately after it is blown, utilizing the internal sterility of the heat-stretched plastic to maintain a high level of hygiene.
The process begins at the blowing station, where preforms are heated to an optimal stretching temperature. Once the preform enters the mold, high-pressure compressed air expands the plastic to the shape of the mold. Because the machine is a "Combi" system, the newly formed bottle is immediately transferred via a neck-handling starwheel to the filling station. This prevents the bottle from being exposed to the ambient environment, which is a common issue in older Carbonated filling machine setups where air conveyors are used.
In the filling stage, the system uses electronic flow meters or level sensors to ensure high-precision dosing. For carbonated beverages, the environment is pressurized with CO2 to prevent foaming and maintain the carbonation level. Finally, the bottle moves to the capping station, where a constant-torque capper applies the closure. The entire operation is managed by a centralized PLC system that synchronizes the speeds of all three modules, ensuring that there are no bottlenecks in the production flow.
The Blowing Filling Capping workflow operates through a four-stage sequence consisting of preform heating and blowing, sterile transfer, precision liquid filling, and high-speed capping. Each stage is meticulously timed to ensure that the physical properties of the PET bottle are maintained while achieving a high-speed fill rate that meets industrial demands.
The cycle starts with the automatic loading of preforms into a heating oven. Infrared lamps heat the preforms while they rotate to ensure uniform temperature distribution. This step is critical; if the temperature is uneven, the bottle wall thickness will be inconsistent, affecting the integrity of the Carbonated filling machine process. Modern systems use closed-loop temperature control to adjust the lamp intensity in real-time based on ambient conditions.
Once heated, the preforms are moved into the blowing molds. A stretch rod descends into the preform to mechanically stretch it vertically, while low-pressure air followed by high-pressure air (30 to 40 bar) expands it horizontally against the mold walls. This "biaxial orientation" enhances the strength and clarity of the PET. In an integrated BFC system, the air used for blowing is often filtered through HEPA systems to ensure the internal surface of the bottle remains sterile.
The transfer from the blowing mold to the filling valve is instantaneous. For a Carbonated filling machine, the filling valve first creates an isobaric environment. This means the pressure inside the bottle is equalized with the pressure in the filling tank. The liquid then flows down the walls of the bottle to minimize turbulence. Because the bottle is still warm from the blowing process, it is more receptive to certain types of labeling or specific filling pressures, although most BFC systems include a cooling phase within the mold.
The final stage involves the application of the cap. The capping head uses a magnetic or electronic torque control to ensure every cap is tightened to the exact specification. This prevents leaks and ensures the consumer can open the bottle easily. After capping, the finished product is discharged onto a conveyor line for labeling and packaging. The lack of air conveyors between the blower and filler in this system reduces the risk of the "chimney effect" where contaminants are drawn into the open bottles.
The primary advantages of a Blowing Filling Capping machine include a 30% reduction in floor space, significant energy savings through the elimination of air conveyors, and superior hygienic control by minimizing bottle exposure to the external environment. By consolidating three machines into one, manufacturers can streamline their production labor and reduce the total cost of ownership over the machine's lifecycle.
In a traditional setup, bottles travel along meters of air conveyors where they are exposed to dust and microbes. The BFC system eliminates this risk. Since the bottle is blown and filled in a single sterile block, the "empty bottle" phase is reduced to milliseconds. This is particularly important for sensitive products like juices or dairy-based beverages that require a high degree of microbiological safety.
The compact design of the BFC unit allows factories to maximize their square footage.
Reduced Footprint: Removes the need for massive conveyor systems.
Labor Reduction: One operator can often manage the entire Combi-block via a single HMI.
Lower Maintenance: Fewer moving parts in the transport phase mean fewer mechanical failures.
Energy efficiency is a hallmark of the modern BFC system. By eliminating the high-powered fans required for air conveyors, the system saves a substantial amount of electricity. Additionally, many BFC units incorporate air recovery systems that capture the high-pressure exhaust from the blowing process and reuse it for low-pressure functions or pre-blowing, leading to a reduction in compressor load by up to 25%.
Technical specifications for a Blowing Filling Capping machine typically feature production speeds ranging from 12,000 to over 48,000 bottles per hour, with high-precision filling accuracy of ±2mm and advanced PLC control for seamless automation. These machines are engineered to handle various PET preform weights and bottle designs, ensuring flexibility across different product lines.
Parameter | Standard Specification | High-Speed Specification |
Production Capacity | 12,000 - 18,000 BPH | 36,000 - 54,000 BPH |
Filling Accuracy | ±2mm (Level) / ±1g (Flow) | ±1mm (Level) / ±0.5g (Flow) |
Blowing Pressure | 25 - 35 Bar | 30 - 40 Bar |
Power Consumption | 120 - 150 kW | 250 - 350 kW |
Bottle Volume | 250ml - 2.0L | 200ml - 1.5L |
Compressed Air Consumption | 20 - 30 m^3/min | 60 - 100 m^3/min |
The integration of a Carbonated filling machine within a BFC block requires specialized pressure-rated filling valves. These valves are often made of SUS316L stainless steel to resist corrosion and ensure food-grade safety. The control system usually employs high-end brands like Siemens or Schneider to manage the complex synchronization required between the rotary blowing wheel and the filling carousel.
Furthermore, the mechanical design focuses on "Neck Handling" technology. By gripping the bottle by the neck ring throughout the process, the machine can switch between different bottle heights without requiring extensive changeover of the transport starwheels. This drastically reduces downtime when switching from a 500ml bottle to a 1.5L bottle, making the system highly versatile for diverse manufacturing needs.
A Blowing Filling Capping system is highly versatile and can be configured to bottle a wide range of liquids, including still mineral water, carbonated soft drinks, fruit juices, functional sports drinks, and even liquid dairy products. The specific configuration of the filling valves and the environmental controls determines the system's suitability for different product viscosities and carbonation levels.
For still water and electrolytes, the machine uses a gravity or low-pressure filling method. Since these products do not foam, the filling speeds can be exceptionally high. The BFC system is the gold standard for bottled water because it maintains the purity of the source by blowing the bottle in a clean-room environment just before the water enters.
When used as a Carbonated filling machine, the BFC block incorporates an isobaric filling system. This maintains the dissolved $CO_2$ in the liquid by filling under pressure. The integrated nature of the machine is beneficial here because the shorter distance between blowing and filling means the bottle wall is still stable and hasn't had time to absorb moisture from the air, which can sometimes interfere with the carbonation stability.
Some BFC systems are designed for "Ultra-Clean" or "Aseptic" filling. These are used for preservative-free juices and teas. In these cases, the preform and the cap are sterilized using H2O2 (Hydrogen Peroxide) or peracetic acid before entering the block. The entire blowing and filling area is housed in a HEPA-filtered enclosure, maintaining a positive pressure environment to prevent any airborne contaminants from entering the system.
Yes, the Blowing Filling Capping machine is designed with modularity in mind, allowing it to handle various bottle sizes and shapes through quick-change mold systems and neck-handling transport mechanisms. This flexibility is essential for B2B manufacturers who need to produce multiple SKUs (Stock Keeping Units) on a single production line to maximize their return on investment.
The shift between different bottle volumes is primarily managed at the blowing station. Modern BFC machines feature "Quick-Change" molds that can be swapped in minutes rather than hours. Because the filling and capping stations utilize the neck ring of the bottle for transport, the height of the bottle does not affect the starwheel alignment. This "universal neck" approach means that as long as the neck diameter remains constant (e.g., 28mm or 30mm), the machine can transition from a small 330ml bottle to a large 2L bottle with minimal mechanical adjustment.
In the context of a Carbonated filling machine, size flexibility also requires the ability to adjust the filling levels and the CO2 snifting times. The digital control panel allows operators to select pre-set recipes for each bottle size. These recipes automatically adjust the conveyor heights, the filling valve open times, and the capping torque, ensuring that every product size meets the same quality standards without requiring manual recalibration of the entire line.
Maintenance and cleaning of a Blowing Filling Capping machine are streamlined through automated Clean-In-Place (CIP) and Sterilize-In-Place (SIP) systems, which ensure the internal fluid paths are sanitized without disassembling the hardware. Regular maintenance schedules focus on the lubrication of rotary joints, inspection of blowing seals, and the calibration of electronic sensors to prevent unplanned downtime.
The CIP process is vital for any Carbonated filling machine. It involves circulating cleaning agents (such as caustic soda and acid) and hot water through the filling valves and tanks. Modern BFC machines feature "dummy bottles" that automatically engage with the filling valves during the cleaning cycle, creating a closed loop. This ensures that every part of the valve that touches the product is thoroughly cleaned and sanitized.
Beyond cleaning, the mechanical integrity of the blowing station is a priority.
Stretch Rod Lubrication: Ensuring smooth vertical movement to prevent preform tearing.
High-Pressure Seal Inspection: Checking the seals in the blowing block to prevent air leaks that could lead to malformed bottles.
Capping Head Calibration: Periodically testing the magnetic torque to ensure caps are neither too loose nor too tight.
Advanced BFC units are equipped with sensors that monitor the health of the motors and the precision of the filling valves. If a valve begins to under-fill, the system can flag it for inspection before it results in a large batch of rejected products. By following a structured maintenance calendar, manufacturers can extend the life of their equipment and ensure that the Carbonated filling machine operates at peak efficiency for many years.
The Blowing Filling Capping machine is a leader in sustainable packaging technology, offering up to 25% lower energy consumption compared to traditional lines by utilizing air recovery systems and eliminating high-wattage air conveyors. As global regulations on carbon emissions tighten, the BFC system provides a clear pathway for beverage manufacturers to reduce their environmental impact while lowering operational costs.
The blowing process requires a massive amount of compressed air. In standard blow molders, this air is vented into the atmosphere after the bottle is formed. In an integrated BFC system, an air recovery unit captures the high-pressure air from the primary blowing cycle and redirects it. This recycled air can be used for the pre-blowing stage or for the machine's pneumatic actuators, significantly reducing the workload on the air compressor and saving electricity.
Heating the preforms is the most energy-intensive part of the bottling process. Modern BFC ovens use advanced infrared lamp configurations and ceramic reflectors to ensure that 90% of the heat is directed into the preform rather than the surrounding environment. Furthermore, because the filling occurs immediately after blowing, some systems can utilize the residual heat for specific packaging advantages, though the main benefit remains the reduction of total energy required to move the bottle through the line.
Integrated systems often require less water for external bottle rinsing. In traditional lines, bottles may need to be rinsed after traveling on long conveyors to remove dust. The BFC system's "Blown-to-Filled" logic keeps the bottle interior pristine, often eliminating the need for an internal rinser entirely for water and Carbonated filling machine applications. This saves thousands of liters of treated water daily, contributing to a more sustainable and eco-friendly factory footprint.
