A Blowing Filling Capping Combiblock boosts production efficiency by 30% by consolidating stretch blow molding, neck-handling liquid filling, and capping into a single direct-transfer block, eliminating air conveyor bottlenecks, reducing energy consumption by up to 30%, decreasing footprint by 40%, and minimizing bottle transfer contamination risks.
Section | Summary |
How combiblock technology changes the line structure | Evaluates the architectural evolution from traditional air-conveyor-linked packaging lines to an integrated Blowing Filling Capping Combiblock, highlighting space saving, mechanical synchronization, and neck-handling advantages. |
Where the 30% efficiency improvement can come from | Breaks down quantitative efficiency gains across downtime reduction, lower power and compressed air usage, reduced scrap rates, and streamlined changeovers in modern bottling operations. |
Bottle blowing quality still matters | Explains critical parameters of preheating, pre-blowing, main blowing pressure, and stretch rod movement, and how precise container geometry impacts downstream filling accuracy and capping integrity. |
Water treatment and product preparation must keep up | Analyzes upstream synchronization requirements, including reverse osmosis water treatment, carbonation units, and thermal processing system capacities needed to keep continuous high-speed combiblocks operating at peak efficiency. |
When combiblock is the right choice | Defines container specs, plant floor space constraints, production output volumes, and product sensitivity thresholds where investing in a combiblock yields maximum return on investment. |
A practical checklist before buying a combiblock | Outlines technical evaluation steps, pitch distance verification, air recovery configuration, neck finish standardizations, and automation control criteria required before capital expenditure approval. |

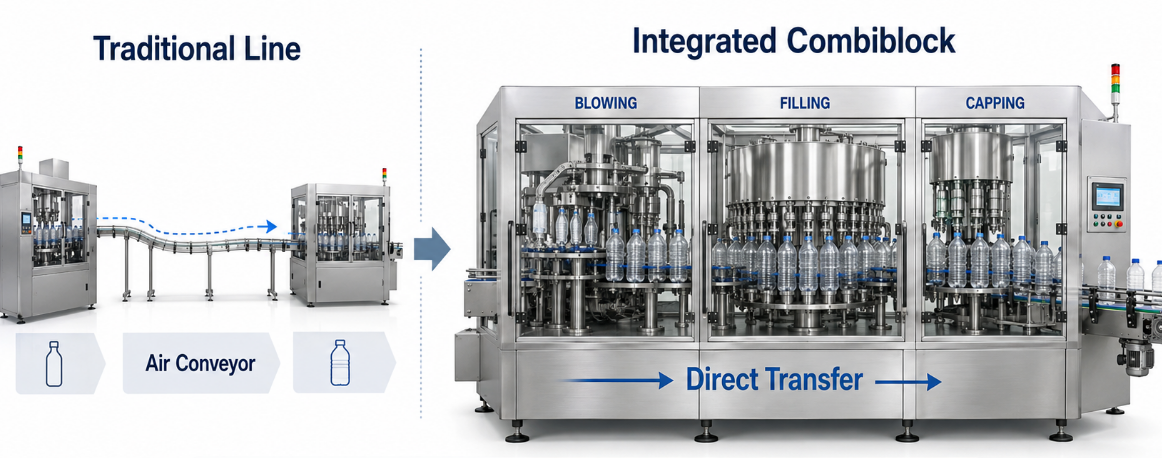

The primary structural change introduced by a Blowing Filling Capping Combiblock is the total elimination of air conveying channels and standalone buffer zones, replacing them with a continuous, positive neck-handling direct transfer mechanism between the blow wheel, filling carousel, and capping turret.
In a conventional liquid packaging facility, PET preforms are blown into bottles on an isolated rotary blow molder, dropped onto an elevated pneumatic air conveyor, and transported dozens of meters to a rinsing-filling-capping triblock. This traditional layout inherently introduces multiple failure points. Air conveyors consume large volumes of filtered air, require high electrical energy for continuous blower operation, and subject lightweight PET containers to static friction, jamming, and ambient atmospheric contamination. When lightweighting bottles down to 10 or 12 grams, air conveyor pressure can easily deform thin container walls, leading to frequent line jams, micro-scratches, and high downtime.
By integrating the stretch blow molder, rotary filler, and capper into one synchronized block, the Blowing Filling Capping Combiblock redefines fluid dynamic and mechanical line layout. Preforms enter through an automated unscrambler, pass through an infrared or near-infrared (NIR) heating oven, and are blown into fresh containers. Immediately upon mold opening, custom mechanical transfer arms equipped with neck grippers take the hot, freshly blown PET container and hand it directly to the filling wheel pitch circle without ever letting go of the neck ring. This continuous positive guidance completely eliminates bottle-to-bottle collisions, tipping, and static charges.
From an engineering perspective, this mechanical integration allows European and global beverage producers to reduce floor space requirements by 30% to 45%. Furthermore, eliminating the intermediate air conveyor removes the necessity for dedicated bottle rinsers in water applications, as containers transition directly from sterile mold cavities into clean filling valves under a positive laminar flow cleanroom enclosure. For high-capacity beverage production, integrating a high-capacity PET bottle Blowing Filling Capping Combiblock system ensures that container handling remains perfectly synchronized across all operational speeds.
Architecture Feature | Traditional Segmented Line | Blowing Filling Capping Combiblock |
Intermediate Transport | 30m–60m Air Conveyor system with electric blowers | Direct mechanical starwheel pitch-to-pitch transfer |
Floor Space Requirement | 100% baseline footprint (e.g., 600 m²) | 55%–60% baseline footprint (e.g., 350 m²) |
Rinsing Mechanism | Separate rotary wet rinser or air rinser wheel | Omitted for water / integrated dry sterile air purge |
Container Handling | Base-guided and neck-guided friction transport | 100% Neck-ring positive mechanical clamping |
Drive Architecture | Multiple independent line motors with sensor buffers | Single synchronized servo drive or master PLC axis control |
Hygienic Zone Size | Large open line area requiring wide cleanroom enclosures | Compact class 100 HEPA enclosed filling zone |
The 30% overall equipment effectiveness (OEE) improvement achieved by a Blowing Filling Capping Combiblock stems directly from eliminating container conveying jams, drastically reducing energy and high-pressure air consumption, shortening batch changeover times, and lowering operational labor requirements.
A rigorous thermodynamic and mechanical analysis of bottling efficiency reveals that traditional line stoppages are rarely caused by central machine failures; instead, over 70% of micro-stoppages originate in container transit zones between machines. Bottle tipping on air conveyors, preforms sticking in feeds, and pressure surges at the filler infeed starwheel account for substantial daily lost production hours. In a Blowing Filling Capping Combiblock, container transfer is deterministic and mathematically synchronized through precision mechanical gears or electronic servo locking. By preventing container fall-overs and misfeeds, line availability metrics immediately rise by 12% to 15%.
Energy performance represents another major pillar of efficiency gain. Traditional rotary blow molders discharge high-pressure compressed air (30 to 40 bar) directly into the atmosphere after container expansion. Modern Blowing Filling Capping Combiblock designs incorporate multi-stage air recycling systems (such as Air-Rec-III), which capture high-pressure exhaust air from the blowing phase and redirect it to pre-blowing steps, pneumatic actuator systems, and factory utility air loops. Combined with compact heating ovens using modern ceramic reflectors and shorter heating zones, total power consumption drops by 25% to 35%, directly lowering operating expenses per thousand produced bottles.
Labor efficiency and maintenance overhead are similarly optimized. In traditional layouts, operators must monitor three separate machine stations spread across a broad floor area. A unified Blowing Filling Capping Combiblock centralizes control into a single Human-Machine Interface (HMI) screen. One qualified technician, backed by an operator for preform loading and cap hopper replenishment, can oversee the entire production unit. Rapid mold changeover systems equipped with quick-locking mechanisms allow bottle format changes in under 30 minutes, minimizing line downtime when switching between various PET bottle volumes. To maximize operational output across CSD, water, and juice lines, deploying a fully automated Blowing Filling Capping Combiblock production line converts these theoretical savings into consistent daily output.
Efficiency Category | Traditional Line Baseline | Combiblock Efficiency Gain | Primary Engineering Source |
Line Stoppage Frequency | 12–18 micro-jams / hour | < 1 micro-jam / hour | Elimination of air conveyors and transfer buffer dropouts |
High-Pressure Air Utilization | 100% loss post-blowing | 30%–45% air recovery rate | Multi-stage closed-loop high-pressure air recycling valves |
Thermal Energy Efficiency | Long oven tunnels, high radiation loss | Compact oven, optimized lamps | Near-infrared heating pitch reduction and ceramic reflection |
Format Changeover Time | 2.5 to 4.0 hours | 0.5 to 1.2 hours | Toolless quick-change mold shells and synchronized HMI recipe selection |
Labor Utilization | 3–4 operators per line shift | 1–2 operators per line shift | Centralized HMI, integrated preform elevator, and unified lubrication |
Container wall distribution, neck dimensional stability, and precise axial wall strength during the stretch blow molding process directly dictate downstream liquid filling height accuracy and bottle capping seal integrity.
When operating an integrated Blowing Filling Capping Combiblock, blowing performance cannot be treated as an isolated step. Because the blown container enters the liquid filling valve within milliseconds of leaving the aluminum mold cavity, the thermal state of the bottle wall is significantly higher than in traditional systems where bottles cool down on air conveyors. If the stretch-blowing parameters are not precisely calibrated, residual stress and thermal contraction can alter the internal volume of the container during liquid injection, resulting in inconsistent fill levels and fill-height variance.
The blowing cycle relies on three primary variables: preform heating profile, mechanical stretch rod velocity, and two-stage pressure curves (pre-blowing pressure between 8 to 15 bar and main blowing pressure between 32 to 40 bar). Precise control of material distribution ensures that PET resin is properly oriented both biaxially and radially. European beverage manufacturers place intense emphasis on lightweighting while maintaining top-load strength to withstand palletization stacking forces. In a Blowing Filling Capping Combiblock, uniform wall thickness prevents structural collapse when cold-filling or carbonated beverage pressure is applied.
Additionally, the neck finish section of the preform must be actively protected during oven transit using cooled water jackets and directed air ventilation. If heat bleeds into the threaded neck region, dimensional distortion will occur. A distorted neck finish impairs capping torque consistency, causing thread stripping or leakage. Utilizing advanced thermal imaging cameras at the oven exit allows automated ejection of misheated preforms before they reach the blowing mold, keeping the Blowing Filling Capping Combiblock running smoothly without cavity contamination. Integrating an advanced Blowing Filling Capping Combiblock system with precision thermal control guarantees that container geometry remains rock-solid prior to filling.
Parameter | Standard Operational Value | Engineering Impact |
Preform Heating Temperature | 105°C – 120°C (PET resin dependent) | Governs material stretchability and clarity |
Pre-Blowing Pressure | 8.0 – 14.0 bar | Sets initial preform expansion geometry |
Main Blowing Pressure | 32.0 – 38.0 bar | Forces PET against mold wall for detail reproduction |
Stretch Rod Speed | 1.2 – 2.2 m/s (servo controller driven) | Controls axial thickness distribution from base to neck |
Mold Cooling Temperature | 8°C – 12°C chilled water circulation | Freezes PET amorphous state and reduces cycle time |
Neck Cooling Shield Temp | < 35°C constant airflow enclosure | Prevents thread deformation under infrared heat |
Upstream raw water purification, degassing, syrup mixing, and carbonation systems must maintain precise flow velocity, temperature stability, and dissolved oxygen parameters to match the continuous high-speed receiving rates of a Blowing Filling Capping Combiblock.
A high-speed Blowing Filling Capping Combiblock operating at rates from 20,000 to 48,000 bottles per hour requires an uninterrupted, hydro-dynamically balanced feed from the liquid processing utility suite. If the water treatment plant or carbonation dosage system experiences pressure fluctuations or batch delays, the combiblock must ramp down or pause, which thermally destabilizes the heating oven and leads to wasted preforms. Therefore, upstream process equipment must be designed with redundant buffer storage, automated flow control valves, and closed-loop pressure regulation.
For mineral water, purified water, and carbonated soft drinks (CSD), reverse osmosis (RO) units, ozone generators, UV sterilizers, and vacuum deaerators must match the peak volumetric displacement of the filling valves. In carbonated beverage applications, product temperature control is critical. Cold filling at 4°C to 8°C or ambient filling up to 18°C requires exact Brix concentration and CO2 gas saturation. High dissolved oxygen levels in water can cause foaming during filling, forcing lower machine speeds. Modern product preparation units utilize mass flow meters and inline refractometers to maintain Brix tolerance within ±0.05° Brix and CO2 volumes within ±0.1 vol, enabling the filling module to operate at maximum mechanical speed.
To safeguard product purity, the liquid pipe loop supplying the filling module in a Blowing Filling Capping Combiblock undergoes automated Clean-In-Place (CIP) and Sterilization-In-Place (SIP) routines. Dummy bottles automatically engage over the filling nozzles, establishing a closed cleaning circuit with hot caustic, acid, and sterile water rinses. This seamless integration ensures that water treatment, product blending, and container filling function as a single continuous process. Plant managers seeking complete system reliability select a comprehensive bottling plant Blowing Filling Capping Combiblock solution that coordinates processing utilities with line speed.
Sub-System | Primary Technical Requirement | Operational Target | Combiblock Interlock Effect |
RO Water Treatment | Continuous permeate flow rate with double-pass membrane | Product water conductivity < 5 µS/cm | Maintains constant level in filling tank |
Vacuum Deaeration | Dissolved oxygen reduction prior to carbonation | Residual O2 < 0.5 ppm | Prevents liquid foaming at filling valve |
Carbonation & Mixing | Mass flow dosage with high-pressure static mixing nozzles | CO2 content 2.0 – 4.2 vol; Brix ±0.05 | Ensures fill level stability and zero overflow |
CIP / SIP Unit | Multi-stage automatic circulation with temperature feedback | 85°C hot water / 2.0% lye solution sanitization | Automatic valve sterilization between product runs |
Investing in a Blowing Filling Capping Combiblock is the optimal choice for high-volume beverage producers seeking to maximize space efficiency, lower energy consumption per bottle, lightweight PET containers, and maintain strict microbiological sanitation levels.
While traditional standalone machine configurations still offer utility in small-scale plants with frequent container material changes (such as switching between glass, HDPE, and PET on a single line), a Blowing Filling Capping Combiblock excels in dedicated high-output PET beverage lines. When production volumes exceed 12,000 bottles per hour, the financial return on investment (ROI) accelerates rapidly due to cumulative energy savings, reduced floor space overhead, and minimized labor headcount.
Plant floor spatial constraints represent another decisive decision factor. Urban or brownfield beverage facilities facing square-footage limitations find that installing a Blowing Filling Capping Combiblock releases valuable floor area for warehouse storage, secondary packaging lines, or raw material staging. Furthermore, when lightweighting programs are initiated to reduce resin costs, lightweight bottles (below 10 grams for 500ml water) cannot physically travel on traditional air conveyors without collapsing or jamming. The neck-clamping transfer architecture of the combiblock makes ultra-lightweighting achievable without sacrificing line efficiency.
Finally, for sensitive products such as fruit juices, teas, dairy beverages, and natural spring waters, microbial control is paramount. By housing the blowing wheel, filling carousel, and capping heads within a single compact positive-pressure laminar airflow enclosure equipped with HEPA filtration, atmospheric exposure is reduced by over 80%. This streamlined hygienic zone eliminates the contamination vectors inherent in long air conveyors, enabling lower preservative usage and extending shelf life.
High-Speed Still Water Lines: Ideal for lightweight 300ml–2.0L PET containers; eliminates rinsing equipment, maximizes energy savings via air recovery, and achieves production speeds up to 54,000 BPH.
Carbonated Soft Drink (CSD) Operations: Excellent for isobaric pressure filling; precise neck handling handles internal bottle pressure dynamics without container distortion.
Hot-Fill & Ultra-Clean Juices: Compatible with heat-set blow molding and aseptic filling environments; ultra-compact cleanroom footprint minimizes sterile air consumption.
Edible Oils and Condiments: Prevents oil mist contamination; net-weight or electronic flowmeter filling valves ensure zero drip and exact weight compliance.
Before purchasing a Blowing Filling Capping Combiblock, engineering teams must carefully evaluate preform quality consistency, utility infrastructure capacity, pitch compatibility, neck finish standardization, and supplier automation architecture.
A successful combiblock integration begins long before equipment arrives on the plant floor. Because a Blowing Filling Capping Combiblock couples three major process stages into one continuous kinetic unit, upstream inputs must adhere to tight quality tolerances. Preform eccentricity, injection gate quality, and moisture content directly affect blowing stability. Procuring preforms with uniform wall thickness and certified PET resin grade is vital to avoiding high reject rates at the blow molder.
Infrastructure compatibility is equally crucial. Engineering teams must confirm that electrical transformers, high-pressure air compressors (providing clean, dry, oil-free air at 35–40 bar), cooling towers, and chilled water loops meet peak demand requirements. Furthermore, standardization of neck finishes (e.g., 29/25, 1881, or tethered cap standards) across product lines drastically reduces changeover frequency and mechanical starwheel modifications.
Lastly, evaluate control system open architecture and servo motor integration. Modern combiblocks utilize centralized controllers (such as Siemens S7-1500 or Rockwell ControlLogix) with EtherCAT or PROFINET communication. This allows real-time data logging, predictive maintenance diagnostics, and seamless integration with factory-wide Manufacturing Execution Systems (MES). Partnering with a manufacturer that offers local field support, ready spare parts availability, and comprehensive technical training guarantees long-term operational success.
[ ] Preform Specification Audit: Verify preform intrinsic viscosity (IV), weight variance (< ±0.2g), and neck dimension compliance.
[ ] High-Pressure Air Infrastructure: Confirm compressor capacity delivers 35–40 bar oil-free air with integrated dew point drying (-40°C PDP).
[ ] Chilled Water Loop: Ensure dedicated chiller output supplies 7°C – 10°C water at required flow rates for mold cooling.
[ ] Cleanroom Air Quality: Validate HEPA filter air change rates and positive pressure maintenance inside the filling chamber.
[ ] Servo Synchronization: Check that all transfer starwheels, blow wheels, and filler carousels are electronically synchronized via absolute encoders.
[ ] Air Recovery System: Confirm inclusion of multi-stage air recycling system to offset high-pressure compressor energy costs.
[ ] HMI and Industry 4.0 Integration: Ensure OPC-UA protocol support for real-time OEE tracking, alarm diagnostics, and remote maintenance access.
Maintenance Note: To ensure uninterrupted operation of a Blowing Filling Capping Combiblock, schedule weekly inspection of transfer starwheel neck grippers, check high-pressure air recovery seal rings every 2,000 operating hours, and verify infrared heating lamp intensity monthly to maintain consistent preform thermal profiles.
The evolution of liquid packaging technology has reached a point where standalone machine configurations are rapidly giving way to unified system integration. By replacing long air conveyors and isolated machinery with a single Blowing Filling Capping Combiblock, beverage manufacturers eliminate the primary root causes of line downtime, container damage, and excessive energy consumption. Achieving a 30% boost in production efficiency is not merely a theoretical claim—it is a proven operational reality backed by reduced floor space demands, lower high-pressure air usage, decreased labor overhead, and superior hygienic control. Investing in a modern Blowing Filling Capping Combiblock empowers bottling facilities to meet aggressive production targets while delivering consistent product quality and long-term cost competitiveness.
