The overall output of an automated Blowing Filling Capping Combiblock is defined as the net quantity of commercially viable, defect-free filled and capped containers produced per hour (measured in bottles per hour or BPH). Net usable output accounts for nominal mechanical pitch speed minus efficiency losses caused by preform thermal stabilization, liquid dosing acceleration, transfer starwheel transfers, and torque-controlled closure sealing.
Understanding the Output of a Blowing Filling Capping Machine
What Does Machine Output Mean?
How Is Output Measured?
Why Is Output Critical for Production Efficiency?
Key Factors That Affect Machine Output
Upgrading to Advanced Models for Higher Capacity
Huayufl's Blowing-Filling-Capping Combiblock
Machine output refers to the real-time volumetric volume of completed, filled, and hermetically sealed containers produced by a unified packaging system within a specific unit of time, typically measured in bottles per hour (BPH).
In modern industrial liquid packaging, evaluating the performance of an integrated system requires evaluating every sub-process in sequence. The Blowing Filling Capping Combiblock integrates three critical processes—stretch blow molding of PET preforms, isobaric or volumetric liquid filling, and rotary torque capping—into a single synchronized mechanical structure. Unlike traditional split lines where air conveyors connect separate machines, an integrated combiblock eliminates intermediate buffer zones, meaning machine output reflects the simultaneous execution of all three core functions at an exact pitch frequency.
From an engineering standpoint, output cannot be viewed purely as a static number given by the equipment supplier. Nominal output represents the maximum theoretical speed under ideal test conditions, while actual operational output factors in pitch spacing, heating oven efficiency, neck finish transfer speeds, pneumatic response times, and valve flow rates. When designing a production line for mineral water, carbonated soft drinks (CSD), hot-fill juices, or dairy, matching the output capacity of the blow-molding wheel to the filling carousel pitch is the fundamental baseline for preventing line bottlenecks.
Understanding these output dynamics allows facility managers to optimize utility consumption, such as high-pressure compressed air and cooling water flow. Every bottle produced demands exact energy inputs; thus, running a Blowing Filling Capping Combiblock at its sweet spot minimizes kilowatt-hour energy expenditure per unit produced while maximizing line yield. Below is a comprehensive breakdown of standard output performance metrics across various container volumes.
Container Volume (mL) | Nominal Output (BPH) | Blow Mold Cavities | Filling Valves | Capping Heads |
250 mL - 500 mL | 18,000 - 24,000 | 12 - 16 | 40 - 48 | 10 - 12 |
500 mL - 1,500 mL | 12,000 - 18,000 | 10 - 12 | 32 - 40 | 8 - 10 |
1,500 mL - 2,500 mL | 6,000 - 10,000 | 6 - 8 | 24 - 32 | 6 - 8 |
Machine output in an automated packaging line defines the operational cadence at which preforms are transformed into marketable packaged goods. It serves as the master baseline parameter for scheduling raw material delivery, labor allocation, and downstream secondary packaging processes such as labeling, shrink-wrapping, and palletizing.
In high-speed operations utilizing a Blowing Filling Capping Combiblock, output also signifies the precision of mechanical synchronization. Because the preform blowing module and liquid filling module are directly linked via mechanical starwheels, machine output dictates the exact residence time of PET preforms inside infrared heating ovens and the precise millisecond opening duration of electronic filling valves.
In industrial automated environments, output is measured using digital photoelectric sensors and optical encoders placed at key transfer starwheel locations. These sensors monitor container presence, indexing speed, and reject counts at the machine discharge starwheel.
The standard unit of measure is Bottles Per Hour (BPH) or Bottles Per Minute (BPM). Advanced SCADA systems compute both Gross BPH (raw machine rotation speed) and Net BPH (salvageable containers passing quality checks for volume, seal integrity, and wall thickness uniformity).
Output directly drives overall equipment effectiveness (OEE) and unit production cost. In high-volume container bottling, higher consistent output amortizes thermal energy costs across a broader volume of finished goods, significantly lowering cost-per-bottle metrics.
When operating a high-speed packaging system, such as a combi blowing filling capping solution, stable output prevents liquid splashing, reduces air consumption variance, and maintains uniform thermal profiles across preforms during stretching.
Operational Working Principle: A combiblock unit synchronizes the blowing wheel, filling carousel, and capping turret using absolute servo encoders. Maintaining stable rotational speed prevents sudden mechanical acceleration, minimizing bottle deformation and liquid aeration during high-speed transfers.
Key factors affecting output include PET preform quality and thermal absorption profiles, high-pressure air blowing dynamics, liquid viscosity and foaming characteristics, filling valve response timing, and mechanical transfer starwheel stability.
Achieving peak output requires precise alignment of physical and mechanical factors. The first variable is PET preform heating and blowing physics. PET preforms must absorb infrared light uniformly to ensure precise wall thickness distribution during high-pressure (30 to 40 bar) stretch blowing. If preforms vary in resin quality or moisture content, blowing cycle times must be lengthened to avoid stress cracking or structural defects, directly reducing achievable output speeds on the Blowing Filling Capping Combiblock.
The second variable is liquid product rheology and temperature stability. Non-carbonated pure water can be filled rapidly using flowmeter-based dynamic valves or gravity valves. However, carbonated soft drinks (CSD) requiring precise dissolved carbon dioxide retention or viscous liquid dairy products require controlled filling velocities to prevent excessive foaming and fill-level variances. If product temperature fluctuates during carbonated beverage filling, degassing increases, forcing operators to lower filling speeds to maintain dosing accuracy.
The third variable involves closure torque and capping mechanics. Modern magnetic-hysteresis capping heads ensure exact thread engagement without stripping closure bands. However, cap feeding alignment, air-chute clearing speeds, and pick-and-place transfer timing must match the pitch velocity of the blowing and filling sections. Any delay in cap feeding triggers automatic anti-filling interlocks, temporarily pausing filling valves and reducing continuous line output. Integrating high-performance components within a single structural block maximizes production stability across all shifts.
Factor / Variable | Impact on Machine Output | Optimization Strategy |
Preform Heating Profile | Poor heat penetration extends blow time; drops output by 10-15%. | Install closed-loop infrared heating with ventilation control. |
Liquid Viscosity & Foaming | High turbulence requires slower filling speeds to prevent spills. | Utilize electronic flowmeter valves with multi-stage flow control. |
Compressed Air Pressure | Pressure drops (<30 bar) slow mold expansion; causes defect rejects. | Implement air-recovery systems and dedicated surge tanks. |
Capping Head Alignment | Misaligned cap chutes cause jams and automated stop alerts. | Use optical cap sorters and magnetic hysteresis capping heads. |
To sustain optimal production across multi-shift factory operations, mechanical maintenance procedures must focus on wear components within transfer starwheels, blowing mold locks, and filling valve seals. Utilizing a dedicated fully automatic bottling line combiblock ensures that mechanical pitch interfaces remain fixed, avoiding the belt-alignment and timing degradation issues common in traditional floor conveyor setups.
European beverage plant operations prioritize energy recovery alongside output metrics. By re-routing high-pressure exhaust air from the blow molding station back into the low-pressure (7-10 bar) pneumatic control circuit, plant engineers reduce compressor power consumption by up to 30% without sacrificing a single bottle per hour of target capacity.
European customers frequently inquire why our engineering designs emphasize rigid neck-handling starwheels over base-handling conveyors. Neck-handling ensures lightweight PET bottles remain structurally stable during high-speed transfer, eliminating base buckle and tipping risks when processing light-weighted eco-bottles at speeds exceeding 20,000 BPH.
Maintenance Tip: Inspect high-pressure stretching rod seals and pneumatic valve manifolds every 500 operating hours. Replacing worn PTFE seals prevents high-pressure air leaks, guaranteeing consistent mold inflation rates and maintaining maximum target output.
Upgrading to advanced combiblock packaging systems boosts overall container output by combining servomotor pitch synchronization, electronic flowmeter filling technology, lightweight neck handling, and automated quick-changeover mold mechanisms.
Upgrading from legacy split blowing and filling lines to a modern Blowing Filling Capping Combiblock provides immediate capacity gains. Traditional layouts rely on long air conveyors between blow molders and fillers. These air conveyors introduce line friction, bottle jamming, static dust accumulation, and excessive footprint requirements. Furthermore, lightweight PET containers easily buckle or jam under air-conveyor pressure, causing line stoppages that severely reduce operational efficiency.
Advanced combiblock systems replace air conveyors with pitch-matched servo-driven transfer starwheels equipped with mechanical neck grippers. This neck-handling technology allows continuous transfer of lightweight containers directly from blowing molds into filling valves. By eliminating the buffer zone, line efficiency increases from typical legacy levels of 75-80% to over 95% line uptime, translating directly into higher net shift output.
Furthermore, advanced models integrate electronic volumetric or mass flowmeter filling technology. Unlike traditional mechanical spring-loaded level filling valves, electronic flowmeter valves operate without container contact in still liquid applications, or with high-precision pneumatic control in isobaric CSD applications. This eliminates valve-seal wear, prevents cross-contamination, and allows instantaneous volume adjustments via the HMI touch panel without mechanical adjustments, shortening changeover downtime from hours to minutes.
Feature Comparison | Legacy Split Bottling Lines | Advanced Combiblock System |
Line Efficiency (OEE) | 75% - 82% | 92% - 98% |
Footprint Requirement | 100% (Baseline area) | 30% - 45% Footprint Reduction |
Container Handling Method | Air Conveyor / Base Rail | Direct Neck Gripper Transfer |
Mold Changeover Time | 3.5 to 5.0 Hours | Under 1.5 Hours (Quick-Lock) |
Energy Consumption | High (Separate Conveyor Blower Motors) | Low (Integrated Air Recovery System) |
When selecting advanced equipment, European clients emphasize hygiene standards and modular accessibility. Integrating HEPA air filtration enclosures above the filling and capping zone maintains an ISO Class 5 clean environment. This reduces chemical preservative requirements while extending liquid shelf life, making high-speed advanced combiblock systems ideal for sensitive applications such as cold-fill juices, dairy items, and electrolyte sports drinks.
From an investment standpoint, purchasing a modern high-capacity Blowing Filling Capping Combiblock reduces labor requirements. A single operator can oversee preform loading, blowing, filling, capping, and closure feeding from a central HMI console, lowering operational overhead while reducing human error during sanitary CIP (Clean-In-Place) procedures.
Our engineering group designs these platforms with quick-change mold locking levers and tool-less starwheel guides. This structural design philosophy allows production teams to switch between 330 mL and 1.5 L bottle formats within a single shift, maximizing operational flexibility for contract beverage packers and multi-SKU brand owners alike.
Changeover Tip: Implement standardized CIP (Clean-In-Place) recipes on electronic flowmeter valves. Automated sanitization cycles ensure complete valve sterilization in under 45 minutes, minimizing non-productive downtime during liquid flavor switches.

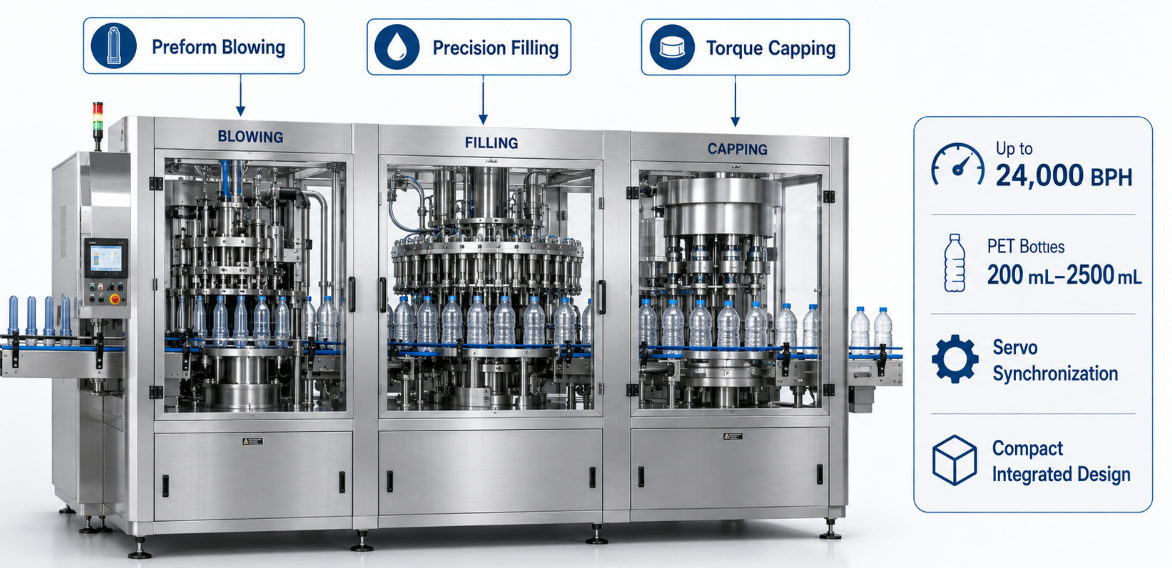

Huayufl's Blowing-Filling-Capping Combiblock provides high-speed automated output reaching up to 24,000 bottles per hour, integrating precise servo stretching, electronic flowmeter liquid dosing, and heavy-duty torque capping into a compact, sanitary footprint.
At our engineering facility, we design high-capacity packaging machinery tailored to demanding global production standards. The Huayufl Blowing Filling Capping Combiblock embodies decades of refinement in stretch blow molding kinetics, fluid dynamics, and automated motion synchronization. Designed for continuous multi-shift operations, this platform handles pure water, carbonated soft drinks, juices, and milk products with uncompromising dosing accuracy and minimal maintenance requirements.
The system utilizes a central servo-driven mechanical linkage that locks the blowing wheel, transfer starwheels, filling carousel, and capping turret into absolute angular alignment. Each blowing cavity features independent servo-driven stretch rods, allowing operators to adjust stretching velocity profiles per preform geometry directly from the touchscreen HMI. This level of precise motion control prevents wall thinning, guarantees uniform structural rigidity, and allows lightweight PET preforms to be blown without structural failure at maximum rated operational output speeds.
In the filling module, Huayufl integrates non-contact electromagnetic flowmeters or mass flowmeters depending on product conductivity and viscosity. The filling valves utilize double-speed flow control logic—fast initial flow followed by slow neck-finish topping—to eliminate turbulence and foaming in liquid filling applications. The capping module employs magnetic hysteresis capping heads with adjustable non-contact torque settings, ensuring consistent closure sealing without damaging cap threads or security tamper bands.
Technical Parameter | Specification / Capability |
Maximum Design Capacity | 24,000 Bottles Per Hour (BPH) |
Applicable Container Types | PET Bottles (200 mL to 2,500 mL) |
Filling Temperature Range | Ambient (Water/CSD) to Hot-Fill (85°C - 92°C) |
Dosing Accuracy | ± 0.2% (Flowmeter / Mass Flow Sensor) |
Blow Air Recovery Rate | Up to 30% - 35% High-Pressure Air Recycled |
Control System Architecture | Siemens PLC / Motion Controller with Touchscreen HMI |
European beverage brand managers frequently ask why our combiblock architecture features isolated cleanroom enclosures with positive laminar airflow. In modern factory setups, hygiene directly impacts shelf-life stability. Isolating the liquid filling and capping zones under HEPA filtration prevents air-borne particulates and microbial contamination, giving operators complete confidence when bottling non-preservative formulations.
By specifying an integrated Blowing Filling Capping Combiblock from Huayufl, production plants reduce total cost of ownership (TCO). The elimination of intermediate air conveyors lowers floor space demands by up to 45%, decreases total connected electrical load, and simplifies spare parts inventory management into a single, standardized equipment family.
In summary, calculating and optimizing machine output is not merely a matter of increasing motor RPM. It requires a balanced engineering approach that harmonizes preform thermal conditioning, aerodynamic mold venting, fluid flow stability, and mechanical starwheel transfer precision. Implementing advanced combi technology remains the most effective strategy for beverage producers seeking higher operational productivity, lower energy consumption, and consistent product quality.
Engineering Recommendation: Ensure incoming high-pressure compressed air is conditioned through a refrigerated air dryer to maintain a pressure dew point of +3°C. Moisture-free compressed air extends blowing valve solenoid lifespan and prevents condensation inside blow mold cavities during high-speed production runs.
